Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 4456105 Element, Broil Special Order $ 110.10

2 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

3 4396923 Grill, Broiler   (Replaces: 3147563) In-Stock Immediately $ 52.04

4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

5 3181534 Rack, Roasting Appelez-nous -
6 8300796 Rack, Oven Appelez-nous -
7 8300204 Element, Hidden Bake Special Order $ 81.49

9 4451583 Motor Convection Special Order $ 140.53

10 4452226 Blade, Fan Special Order $ 30.89

11 WPW10160821 Cover, Fan   (Replaces: 4448418) Special Order $ 244.79

12 4452227 Nut Special Order $ 33.98

13 WP9760769 Element, Convection   (Replaces: 4452157) In-Stock Immediately $ 289.61

14 8300799 Tray, Hidden Bake Appelez-nous -
15 8300800 Cover, Access Appelez-nous -
16 WP4449154 Screw, 8-32 X .440   (Replaces: 4449154) Special Order $ 6.80

17 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 6.47


    View Diagram in Separate Window     Print Icon   Print Part List

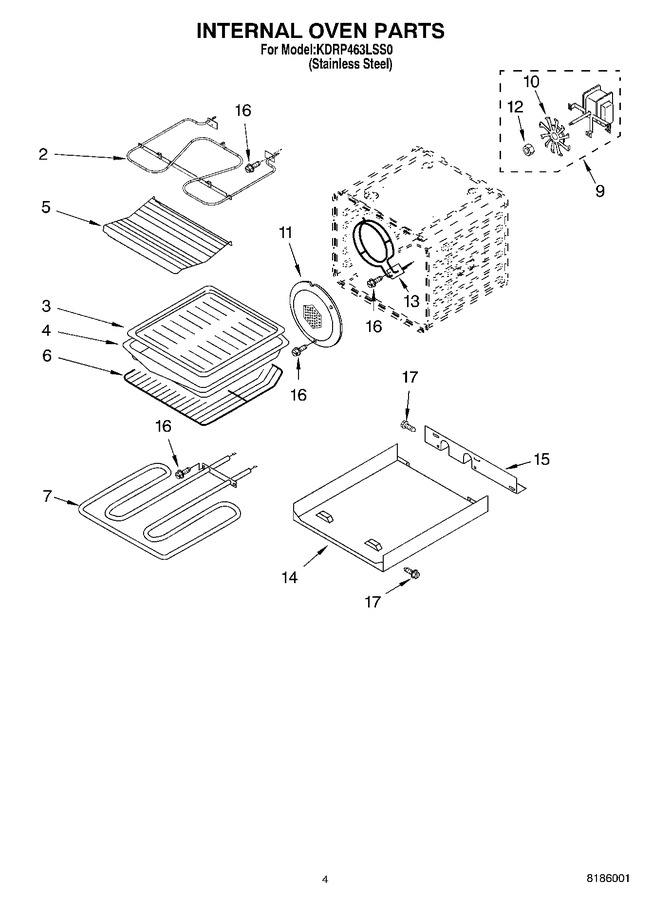

Diagram for KDRP463LSS0
