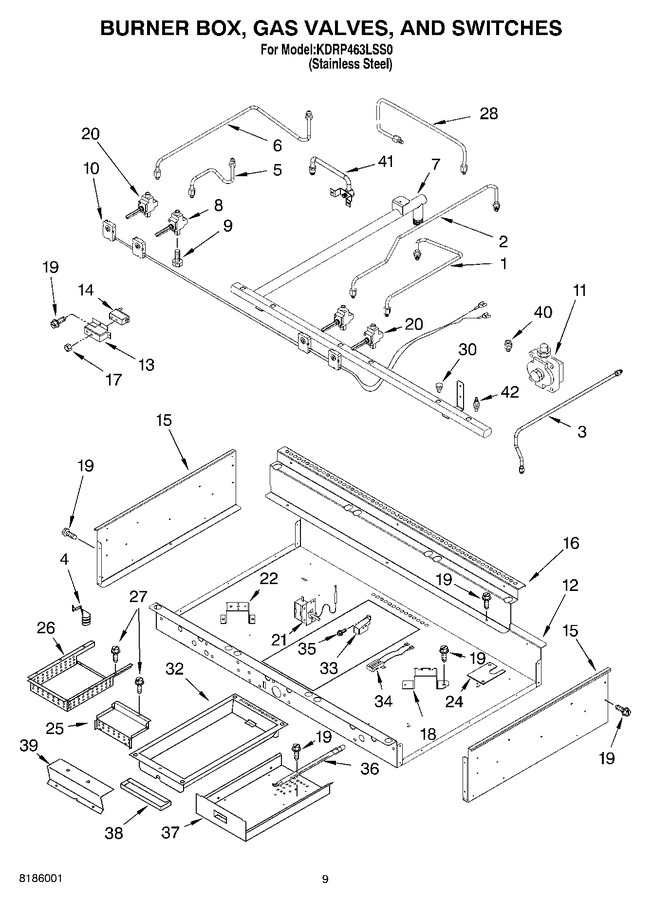

07 - Burner Box, Gas Valves And Switches


08 - Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300231		Tubing, Gas Burner - Rf		Appelez-nous	-
2	8300230		Tubing, Gas Burner - Rr		Appelez-nous	-
3	8300156		Tube, Manifold To Regulator		Appelez-nous	-
4	98005642		Clip, Bulb   (Replaces: 313382)			Immediately	$ 74.64
5	8300187		Tubing, Gas Burner - Lf		Appelez-nous	-
6	8300188		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8301045		Manifold		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	WP4450118		Nut (includes Items No.9 & No.30)   (Replaces: 4450118)				$ 7.16
8	3192157		Valve, Burner (turbo)		Appelez-nous	-
9	3185829		Bolt, Valve		Appelez-nous	-
10	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
10	8301209		Burner Switch & Harness Assembly		Appelez-nous	-
11	WP9759091		Regulator, Pressure   (Replaces: 4453033)			Immediately	$ 291.80
12	8301072		Burner Box		Appelez-nous	-
13	8301705		Bracket, Griddle Valve		Appelez-nous	-
14	8301058		Valve, Griddle		Appelez-nous	-
15	8301102		Side, Burner Box (left Hand)		Appelez-nous	-
15	8301101		Side, Burner Box (right Hand)		Appelez-nous	-
16	8284946		Support, Rear		Appelez-nous	-
17	WP488130		Nut, Hex   (Replaces: 488130)				$ 6.27
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	3191292		Valve, Burner Auxillary Shelf				$ 120.40
21	8284765		Griddle, T-stat				$ 255.18
22	8301067		Bracket, T-stat		Appelez-nous	-
24	4455922		Cover, Panel		Appelez-nous	-
25	8301042		Box, Rear Lower		Appelez-nous	-
26	8301059		Box, Front Lower		Appelez-nous	-
27	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
28	8301040		Tube, Griddle		Appelez-nous	-
30	8284796		Plug, Manifold		Appelez-nous	-
32	8284759		Module, Griddle		Appelez-nous	-
33	8284800		Bracket, Ignitor		Appelez-nous	-
34	8284941		Ignitor, Griddle				$ 98.51
35	3400855		Screw		Appelez-nous	-
36	8285051		Log Burner, Griddle				$ 60.54
37	8285056		Enclosure, Griddle		Appelez-nous	-
38	8284763		Tray, Drip		Appelez-nous	-
39	8284811		Bracket		Appelez-nous	-
40	4453116		Adapter (/2`` Male)				$ 153.80
40	4453115		Adapter, 1/2`` Female				$ 108.60
41	8301251		Assy, Outlet Tube		Appelez-nous	-
42	8284804		Plug, Manifold (open)		Appelez-nous	-
