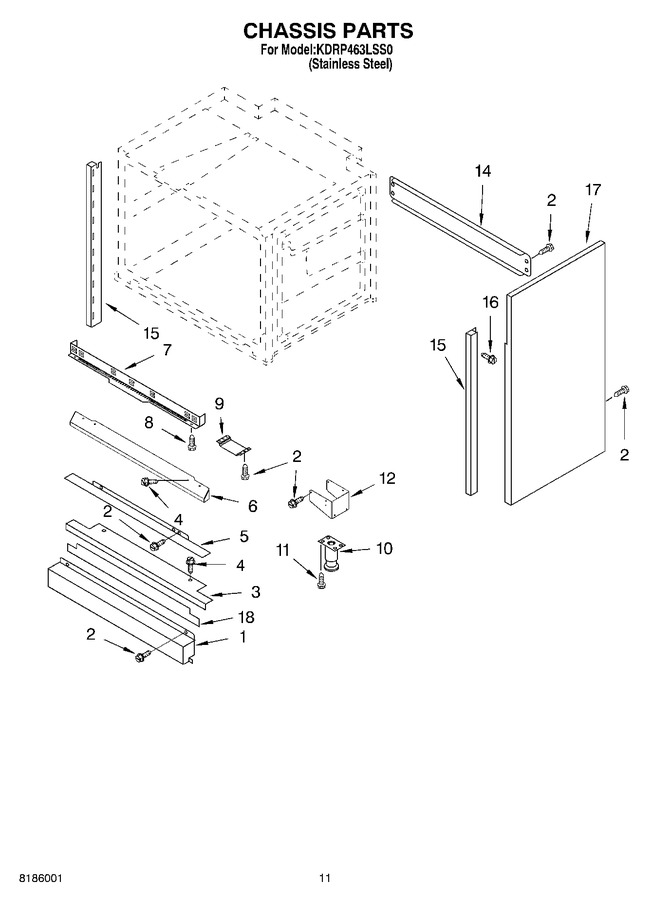

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452803 | Vent, Bottom Lower |
|
- | |||||
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | 8301087 | Backer, Trim Lower |
|
- | |||||
| 4 | WP3400805 | Screw, 8-18 X 3/8 (Replaces: 3400837) |
|
$ 6.47 | |||||
| 5 | 8301225 | Deflector, Center |
|
- | |||||
| 6 | 8300978 | Vent, Bottom Upper |
|
- | |||||
| 7 | 8300804 | Vent, Center |
|
- | |||||
| 7 | 4453327 | Gasket |
|
- | |||||
| 7 | WP3400805 | Screw (4) (Replaces: 3400805) |
|
$ 6.47 | |||||
| 8 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | 4455604 | Bracket, Mounting Regulator |
|
- | |||||
| 10 | 4452430 | Foot Assembly |
|
- | |||||
| 11 | 3400518 | Screw, 5/16-12 X 5/8 |
|
$ 11.68 | |||||
| 12 | 4455644 | Gusset |
|
- | |||||
| 14 | 4452434 | Brace, Rear |
|
- | |||||
| 15 | 4452804 | Trim, Front (right Side) |
|
- | |||||
| 15 | 4453205 | Trim, Front (left Side) |
|
- | |||||
| 16 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 17 | 4452418 | Side Chassis (right Side) |
|
- | |||||
| 17 | 4452419 | Side Chassis (left Side) |
|
- | |||||
| 18 | W10138103 | Bracket, Anti-tip (Replaces: 4453202) |
|
$ 167.49 | |||||
| 18 | WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 7.11 | |||||
| 18 | 4452222 | Spacer, Harness |
|
- | |||||
| 18 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 18 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 18 | 4453192 | Seal, Ribbon Cable |
|
- | |||||
| 18 | 4453191 | Seal, Access Panel |
|
- | |||||
| 18 | 814381 | Pin Hinge Kit |
|
$ 7.73 | |||||
| 18 | 8284782 | Spud Kit |
|
- | |||||
| 18 | W10138103 | Bracket, Anti-tip (Replaces: 4453141) |
|
$ 167.49 | |||||
| 18 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 18 | 8300154 | Insulation |
|
- | |||||
| 18 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 18 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 18 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 18 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 18 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 18 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 18 | 242829 | Wire (12 Ga. 150 C Red) |
|
- | |||||
| 18 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 18 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 18 | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| 18 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 18 | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| 18 | WP4448444 | Grommet, Rail (Replaces: 4448444) |
|
$ 6.73 | |||||
| 18 | 8284849 | Harness, Jumper (white) |
|
- | |||||
| 18 | 8284848 | Harness, Jumper (black) |
|
- | |||||
| 18 | 8301593 | Harness, Jumper (valve) |
|
- | |||||
| 18 | 8301716 | Harness, Wire (main) |
|
- | |||||
| 18 | 8301717 | Harness, Wire (spark Module) |
|
- | |||||
| 18 | 3192230 | Harness, Wire Ignitor (28``) |
|
- | |||||
| 18 | 4456150 | Harness, Wire (ignitor 42``) |
|
- | |||||
| 18 | 3191506 | Bushing, Conduit |
|
- | |||||
| 18 | 1129449 | Bushing |
|
- | |||||
| 18 | 8301467 | Conduit |
|
- | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 18 | WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | |||||
| 18 | 4450800 | Screw, Ground |
|
$ 11.55 |
