SELECT A DIAGRAM

01 - Oven, Literature


02 - Oven Door


03 - Internal Oven


04 - Control Panel


05 - Top Venting

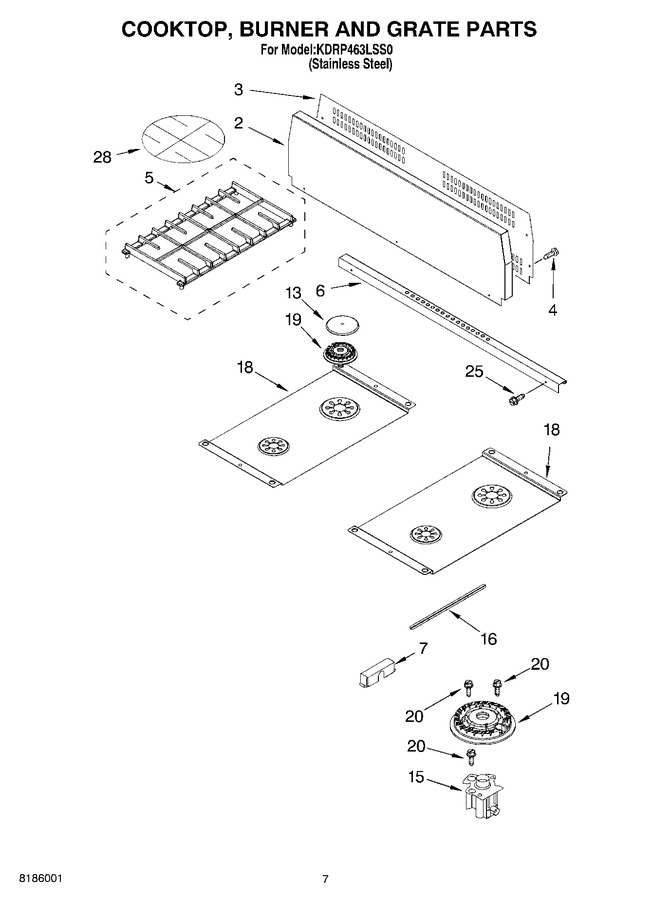

06 - Cooktop, Burner And Grate


07 - Burner Box, Gas Valves And Switches


08 - Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4454960		Backsplash		Appelez-nous	-
3	8284712		Support, Backsplash		Appelez-nous	-
4	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
5	4454963		Grate, Burner		Appelez-nous	-
6	8284851		Trim, Island		Appelez-nous	-
7	8285038		Cover, Burner Spud		Appelez-nous	-
13	4455243		Cap, Burner (14k (2))				$ 41.37
13	WP8284669		Cap, Burner (6k (2))   (Replaces: 8284669)			Immediately	$ 64.79
15	9754188		Holder, Orifice Includes Orifice (turbo (4))				$ 48.21
15	9754182		Holder, Orifice Includes Orifice (auxillary (2))		Appelez-nous	-
16	4454974		Support Rail (r.h.& L.h.)		Appelez-nous	-
18	8284812		Cooktop, Black		Appelez-nous	-
19	4455979		Burner Head 14k (auxillary (2))				$ 28.52
19	4455849		Burner Head 14k (turbo (2))				$ 47.68
20	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 6.42
25	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
28	4455109		Plate, Simmer				$ 52.31
