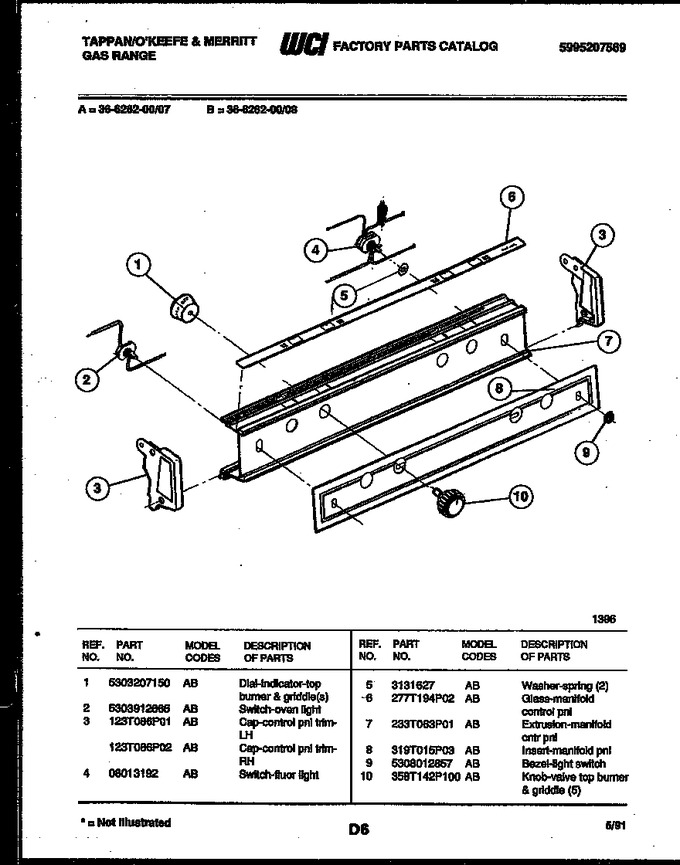

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Control Panel
04 - Cooktop Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Broiler Drawer Parts
08 - Panel Compartment
09 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207150 | Dial-indicator-top Burner & Griddle(s) |
|
- | |||||
| 2 | 5303912665 | Switch-oven Light |
|
- | |||||
| 3 | 123T086P01 | Cap-control Pnl Trim-lh |
|
- | |||||
| 4 | 08013192 | Switch-fluor Light |
|
- | |||||
| 5 | 3131627 | Washer-spring (2) |
|
- | |||||
| 6 | 277T194P02 | Glass-manifold Control Pnl |
|
- | |||||
| 7 | 233T063P01 | Extrusion-manifold Cntr Pnl |
|
- | |||||
| 8 | 319T015P03 | Insert-manifold Pnl |
|
- | |||||
| 9 | 5308012857 | Bezel-light Switch |
|
- | |||||
| 10 | 358T142P100 | Knob-valve Top Burner & Griddle (5) |
|
- | |||||
| 3A | 123T086P02 | Cap-control Pnl Trim-rh |
|
- |
