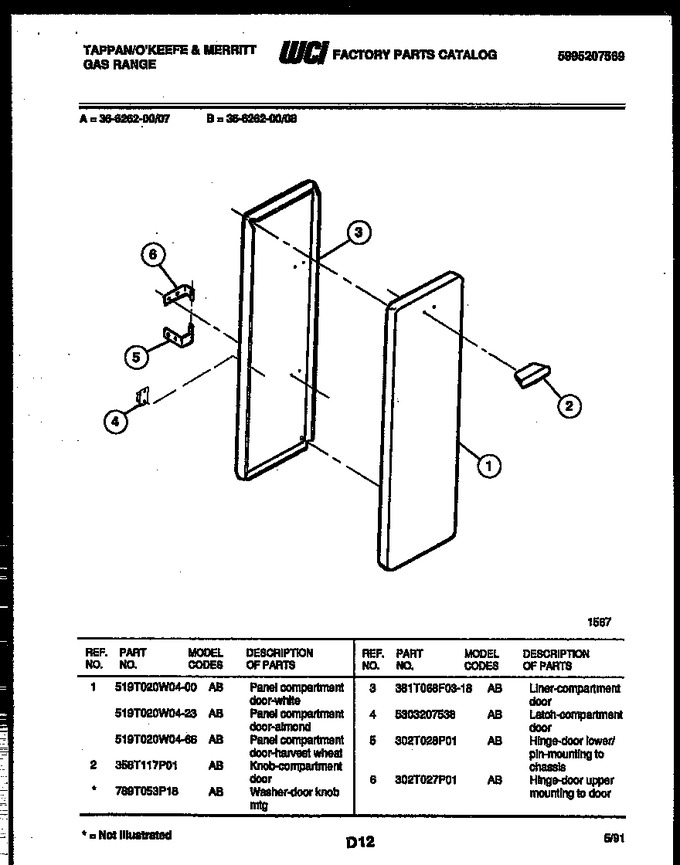

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 519T020W04-66 | Panel Compartment Door-harvest Wheat |
|
- | |||||
| 2 | 358T117P01 | Knob-compartment Door |
|
- | |||||
| 3 | 381T068F03-18 | Liner, Compartment Door |
|
- | |||||
| 4 | 5303207538 | Latch-compartment Door |
|
- | |||||
| 5 | 302T028P01 | Hinge-door Lower/pin-mounting To Chassis |
|
- | |||||
| 6 | 302T027P01 | Hinge-door Upper Mounting To Door |
|
- | |||||
| 2A | 789T053P18 | Washer-door Knob Mtg (non-illustrated) |
|
- |
