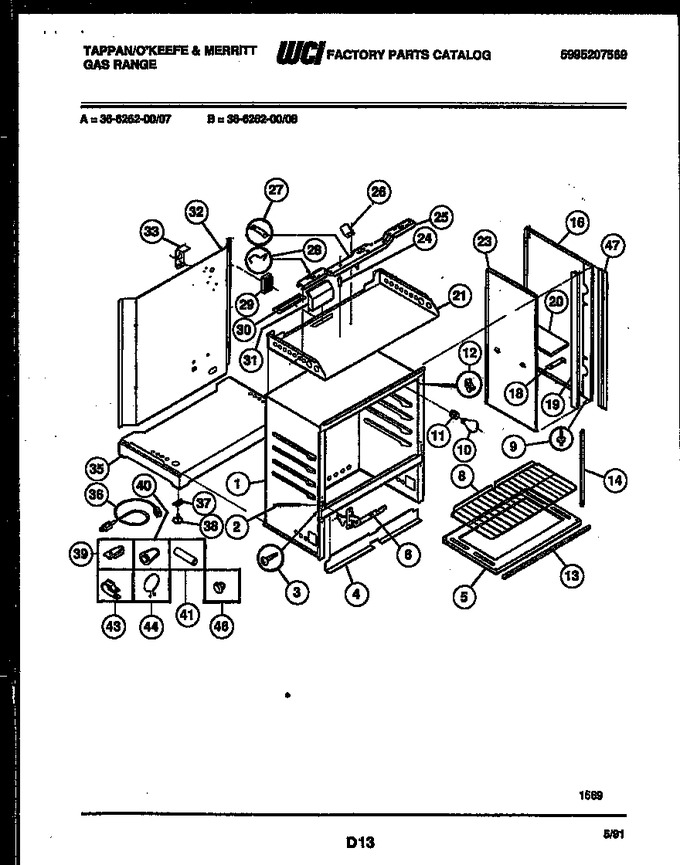

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 675T041P01 | Spring, Oven Door Cam (2) |
|
- | |||||
| 3 | 636T066P06 | Screw, Shoulder (2) |
|
- | |||||
| 4 | 655T308F02 | Shield, Wool |
|
- | |||||
| 5 | 5303206950 | Bottom-oven |
|
- | |||||
| 6 | 5303205939 | Cam-oven Door Assy-lh |
|
- | |||||
| 8 | 591T073P02 | Rack, Oven (2) |
|
- | |||||
| 9 | 08010603 | Pin-body Panel Guide |
|
- | |||||
| 10 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 11 | 662T012P11 | Socket, Oven Light |
|
- | |||||
| 12 | 5303011805 | Clip, Thermo Bulb |
|
- | |||||
| 13 | 647T068P02 | Seal-door-top & Bottom |
|
- | |||||
| 14 | 5303207593 | Seal-door-side |
|
- | |||||
| 16 | 08010600 | Panel-bodyside-lh-almond |
|
- | |||||
| 16 | 515T047F16-00 | Panel Bodyside-lh-harvest Wheat |
|
- | |||||
| 16 | 515T057F16-00 | Panel Bodyside-lh-white |
|
- | |||||
| 18 | 072T552F01-18 | Brkt Stfnr |
|
- | |||||
| 19 | 136T216F01-18 | Channel, Stiffener |
|
- | |||||
| 20 | 5303207975 | Shelf-compartment |
|
- | |||||
| 21 | 5303269825 | Burner-box |
|
- | |||||
| 23 | 048T010F02-18 | Body Panel, Inside |
|
- | |||||
| 24 | 665T072P06 | Spacer-burner Support Channel |
|
- | |||||
| 25 | 136T300F03-18 | Channel, Burner Support |
|
- | |||||
| 26 | 600T014F01 | Reflector, Griddle Burner |
|
- | |||||
| 27 | 241T017P23 | Fstnr - Wire Retainer (3) |
|
- | |||||
| 28 | 612T094P01 | Retainer, Oven Burner |
|
- | |||||
| 29 | 709T033P02 | Terminal Block |
|
- | |||||
| 30 | 3131536 | Shield-wool - Vent |
|
- | |||||
| 31 | 252T047W01-18 | Flue Box-lower |
|
- | |||||
| 32 | 3131516 | Back, Main |
|
- | |||||
| 33 | 072T612F02 | Bracket |
|
- | |||||
| 35 | 036T052W05-18 | Base, Main |
|
- | |||||
| 36 | 171T021P07 | Cord-power |
|
- | |||||
| 37 | 241T017P10 | Fastener-leveling Leg |
|
- | |||||
| 38 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 39 | 3203010 | Fastener-8 Au Type (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 40 | 174T133P02 | Cover, Screw Tip Protector |
|
- | |||||
| 41 | 660T032P01 | Sleeve-insulation |
|
- | |||||
| 43 | 241T017P128 | Fstnr-clamp-power Cord |
|
- | |||||
| 44 | 08067944 | Fstnr Purse Lock (4) |
|
- | |||||
| 46 | 5308010594 | Plug Button |
|
- | |||||
| 47 | 08010602 | Trim B/side-vertical |
|
- | |||||
| *52495 | 5303200320 | Insulation-wool Back |
|
- | |||||
| *52495 | 3200323 | Insulation-wool Top & Sides |
|
- | |||||
| *52496 | 191T122F362 | Wiring Diagram (not For Purchase) |
|
- | |||||
| *52496 | 328T015P15 | Insulation, Channel |
|
- | |||||
| 16A | 515T047F13-66 | Panel Bodyside-rh-harvest Wheat |
|
- | |||||
| 5A | 636T134P01 | Screw-oven Bottom (2) (non-illustrated) |
|
- | |||||
| 6A | 5303205940 | Cam-oven Door Assy-rh |
|
- | |||||
| 6A | 355T588S01 | Kit-door Adjustment (non-illustrated) |
|
- |
