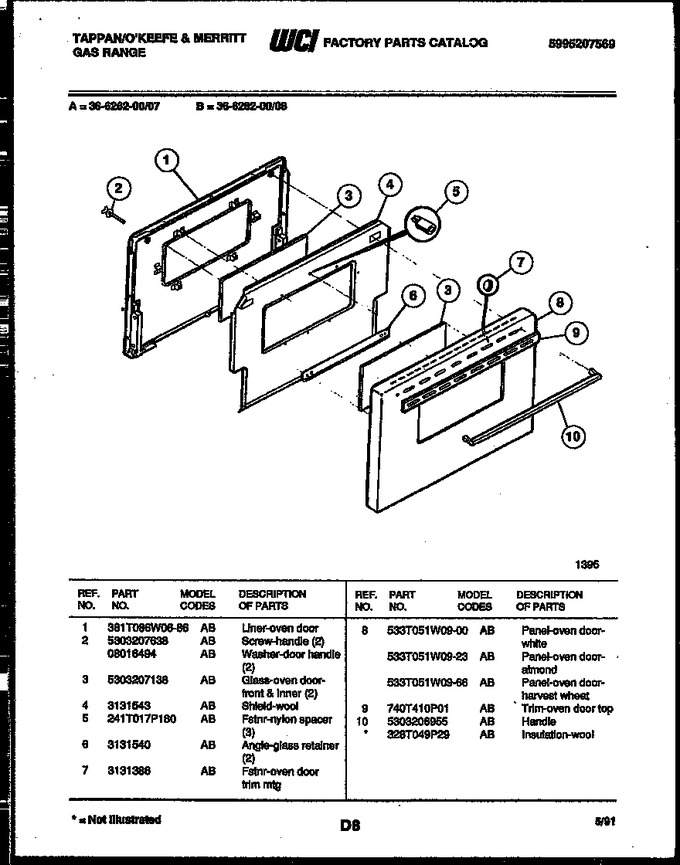

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 381T086W06-86 | Liner, Oven Door |
|
- | |||||
| 2 | 5303207638 | Screw-handle (2) |
|
- | |||||
| 3 | 5303207138 | Glass-oven Door-front & Inner (2) |
|
- | |||||
| 4 | 3131543 | Shield, Wool |
|
- | |||||
| 5 | 241T017P180 | Fstnr-nylon Spacer (3) |
|
- | |||||
| 6 | 3131540 | Angle-glass Retainer (2) |
|
- | |||||
| 7 | 3131386 | Fstnr-oven Door Trim Mtg |
|
- | |||||
| 8 | 533T051W09-66 | Panel-oven Door-harvest Wheat |
|
- | |||||
| 9 | 740T410P01 | Trim-oven Door Top |
|
- | |||||
| 10 | 5303206955 | Handle |
|
- | |||||
| *52480 | 328T049P29 | Insulation-wool |
|
- | |||||
| 2A | 08016494 | Washer-door Handle (2) |
|
- |
