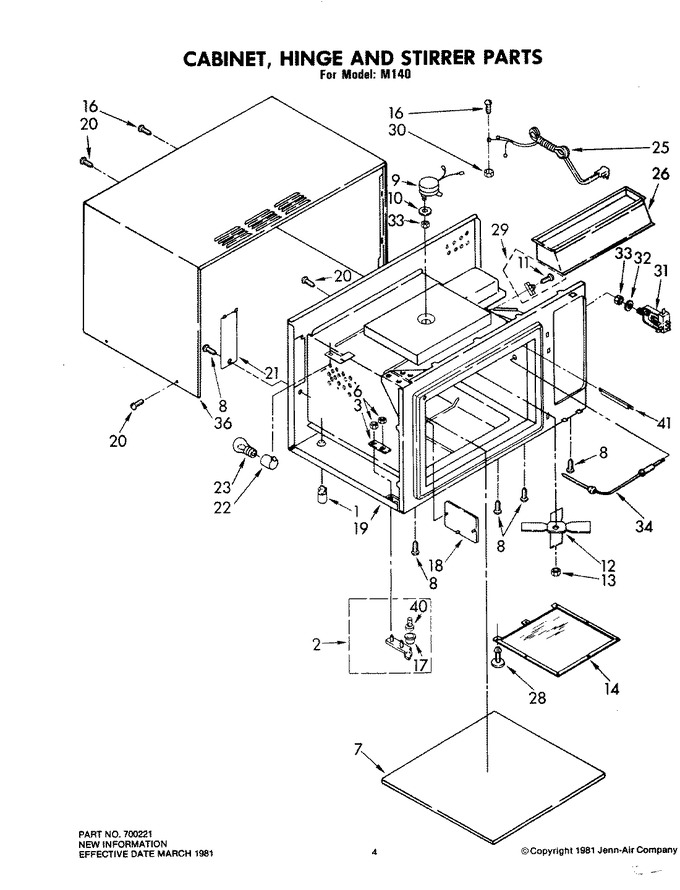

01 - Cabinet Assembly


02 - Control Panel, Door & Latch


03 - Magnetron Assembly


04 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	700983		Foot		Appelez-nous	-
2	DE81-05105A		Top Hinge   (Replaces: 701118)				$ 263.78
2	701119		Bottom Hinge		Appelez-nous	-
3	700978		Plate		Appelez-nous	-
6	700988		Nut Hex		Appelez-nous	-
7	DE81-03449A		Base   (Replaces: 701013)				$ 227.30
8	700969		Screw		Appelez-nous	-
9	701157		Motor Stir		Appelez-nous	-
10	701158		Washer		Appelez-nous	-
11	700965		Screw		Appelez-nous	-
12	DE81-05658A		Stirrer   (Replaces: 701039)				$ 98.92
13	700988		Nut Hex		Appelez-nous	-
14	DE81-05759A		Cover   (Replaces: 701019)				$ 121.92
16	700971		Screw		Appelez-nous	-
17	701026		Bushing				$ 454.72
18	DA81-08026A		Cover   (Replaces: 700976)				$ 397.31
19	W10124350		Not Required Part Or See Note Base & Cavity Assembly		Appelez-nous	-
20	DE81-03604A		Screw   (Replaces: 700999)				$ 156.11
21	DE81-04001A		Cover   (Replaces: 700975)				$ 131.77
22	DE81-08873A		Socket   (Replaces: 700977)				$ 357.62
23	8009		Bulb   (Replaces: Y701159)			Immediately	$ 16.80
25	701107		Cord		Appelez-nous	-
26	701020		Baffle		Appelez-nous	-
28	701095		Fastener				$ 12.82
29	Y701015		Fuse		Appelez-nous	-
30	701022		Nut Hex		Appelez-nous	-
31	701028		Jack		Appelez-nous	-
32	701033		Washer				$ 37.69
33	Y701032		Nut		Appelez-nous	-
34	WP71001870		Probe, Meat   (Replaces: Y700884)				$ 201.71
34	Y701160		Probe & Plug		Appelez-nous	-
36	701161		Wrapper		Appelez-nous	-
40	DE81-05286A		Pin   (Replaces: 701008)				$ 207.26
41	701018		Cover		Appelez-nous	-
41	DE81-04236A		Paint   (Replaces: 700972)				$ 304.16
41	701129		Sealer, Silastic (3 Oz.)		Appelez-nous	-
41	701130		Adhesive, Loctite (1/3 Oz)		Appelez-nous	-
