SELECT A DIAGRAM

01 - Cabinet Assembly

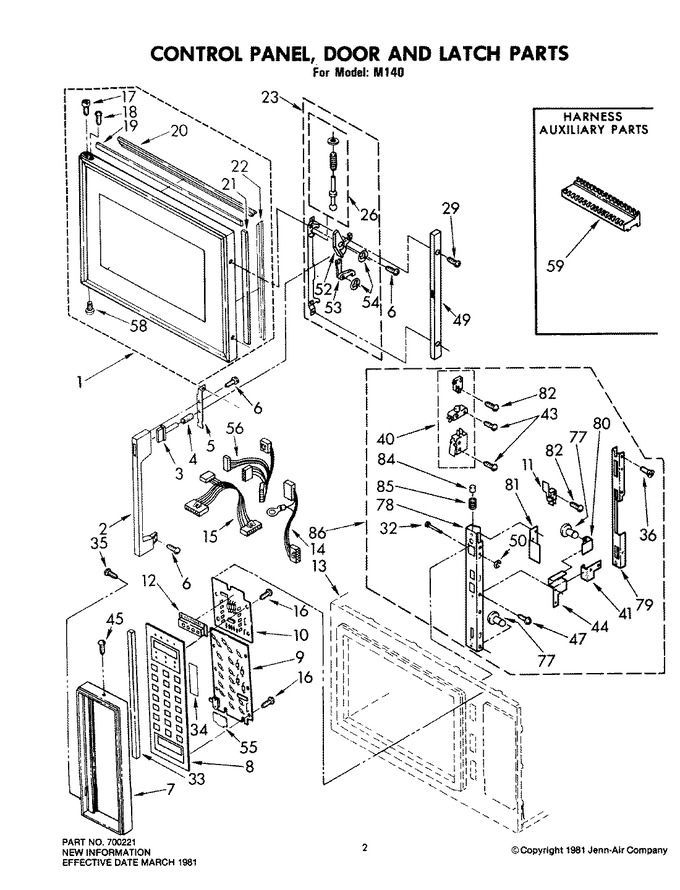

02 - Control Panel, Door & Latch


03 - Magnetron Assembly


04 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701150		Door		Appelez-nous	-
2	DE81-07997A		Handle   (Replaces: 701043)				$ 159.71
3	701045		Button		Appelez-nous	-
4	701060		Spring		Appelez-nous	-
5	701044		Bracket		Appelez-nous	-
6	701063		Screw		Appelez-nous	-
7	701037		Frame		Appelez-nous	-
8	701151		Panel		Appelez-nous	-
9	DE81-08043A		P.c. Board Touch Panel   (Replaces: 701137)				$ 407.90
10	DE81-08634A		Dispaly Assembly L.e.d.   (Replaces: 701138)				$ 276.30
11	701055		Switch		Appelez-nous	-
12	DE81-04356A		Clock   (Replaces: 701135)				$ 242.05
13	W10124350		Not Required Part Or See Note Cabinet		Appelez-nous	-
14	701072		Harness		Appelez-nous	-
15	701070		Harness		Appelez-nous	-
16	DE81-09451A		Screw   (Replaces: 701089)				$ 173.86
17	700981		Screw		Appelez-nous	-
18	700982		Screw		Appelez-nous	-
19	700985		Seal		Appelez-nous	-
20	DE81-06252A		Retainer   (Replaces: 700986)				$ 401.06
21	700984		Seal		Appelez-nous	-
22	DE81-05573A		Retainer   (Replaces: 700987)				$ 523.67
23	701123		Latch		Appelez-nous	-
26	701152		Plunger-latch		Appelez-nous	-
29	DE81-05101A		Screw   (Replaces: 701064)				$ 176.36
32	DE81-06752A		Pin   (Replaces: 700990)				$ 429.76
33	701023		Gasket		Appelez-nous	-
34	701069		Film		Appelez-nous	-
35	701014		Screw		Appelez-nous	-
36	701010		Screw		Appelez-nous	-
40	701153		Switch Kit		Appelez-nous	-
41	700992		Insulator				$ 139.62
43	701147		Screw		Appelez-nous	-
44	701054		Bracket		Appelez-nous	-
45	701125		Screw		Appelez-nous	-
47	DE81-06503A		Screw   (Replaces: 701098)				$ 18.68
49	701049		Cap		Appelez-nous	-
50	DE81-07744A		Ring   (Replaces: 700991)				$ 210.70
52	701046		Cam, Latch		Appelez-nous	-
53	DD81-03942A		Lever   (Replaces: 701047)				$ 229.19
54	DE81-05657A		Ring   (Replaces: 701090)				$ 174.74
55	701083		Shield		Appelez-nous	-
56	701071		Harness		Appelez-nous	-
58	DE81-05286A		Pin   (Replaces: 701008)				$ 207.26
59	701081		Connector		Appelez-nous	-
59	701080		Connector		Appelez-nous	-
59	701079		Connector		Appelez-nous	-
59	DE81-04507A		Connector   (Replaces: 701082)				$ 359.78
77	DE81-04531A		Rivet   (Replaces: 701109)				$ 232.78
78	W10124350		Not Required Part Or See Note Guide, Interlock		Appelez-nous	-
79	W10124350		Not Required Part Or See Note Slide, Interlock		Appelez-nous	-
80	701078		Barrier		Appelez-nous	-
81	701056		Insulator		Appelez-nous	-
82	701065		Screw		Appelez-nous	-
84	00701048		Damper   (Replaces: 701048)				$ 546.38
85	701061		Spring		Appelez-nous	-
86	701121		Interlock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
