Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 701101 Harness,main Appelez-nous -
2 DD81-03608A Harness   (Replaces: 701106) Special Order $ 114.98

3 DD81-03645A Harness   (Replaces: 701102) Special Order $ 163.39

4 DE81-04530A Cap   (Replaces: 701113) Special Order $ 182.86

5 DE81-04972A Plug   (Replaces: 701111) Special Order $ 233.69

6 DE81-04529A Cap   (Replaces: 701114) Special Order $ 198.84

7 701112 Plug Appelez-nous -
8 DE81-10268A Receptacle   (Replaces: 701140) Special Order $ 1,067.33

9 701141 Plug, Terminal Appelez-nous -
10 701133 Housing Appelez-nous -
11 701073 Insulator Appelez-nous -
12 701024 Housing Appelez-nous -
13 701005 Housing Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

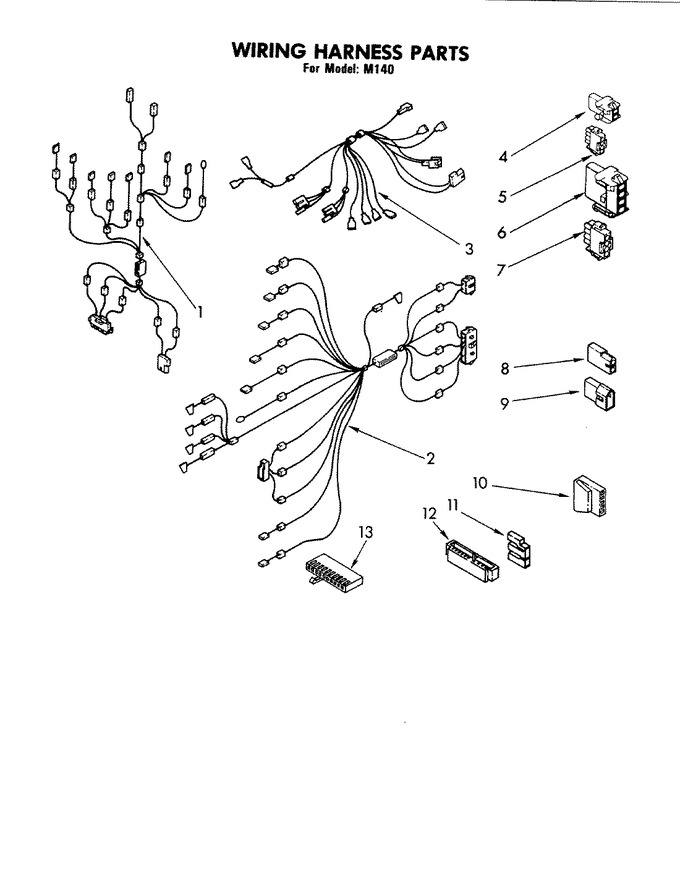

Diagram for M140
