SELECT A DIAGRAM

01 - Cabinet Assembly


02 - Control Panel, Door & Latch

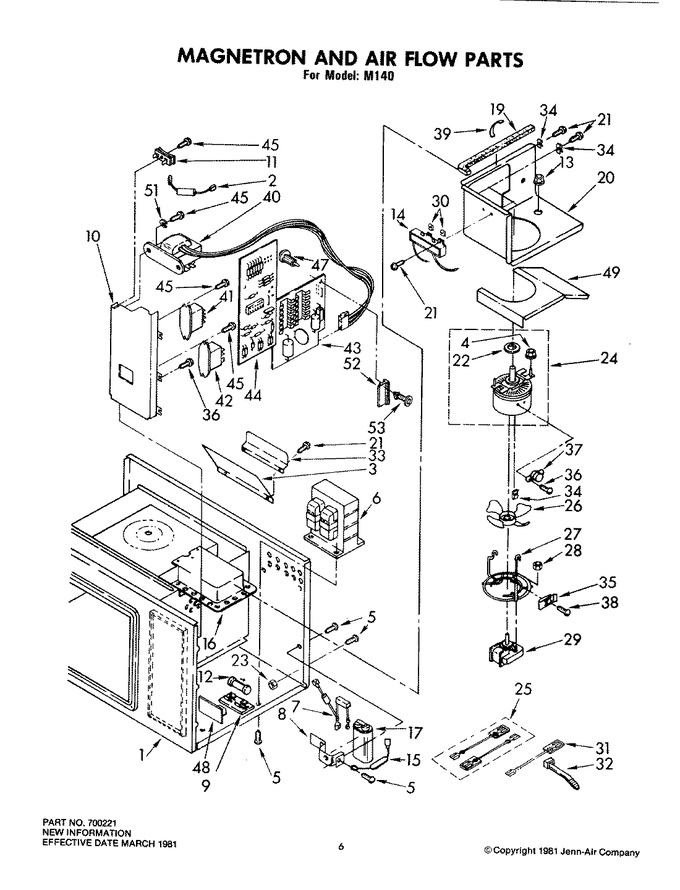

03 - Magnetron Assembly


04 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124350		Not Required Part Or See Note Cabinet		Appelez-nous	-
2	DE81-08149A		Resistor   (Replaces: 701116)				$ 196.89
3	700995		Deflector		Appelez-nous	-
4	11069197		Nut   (Replaces: 701075)		Appelez-nous	-
5	700971		Screw		Appelez-nous	-
6	700998		Transformer		Appelez-nous	-
7	DE81-05104A		Rectifier   (Replaces: 701117)				$ 177.64
8	701007		Bracket		Appelez-nous	-
9	701034		Fuse Block				$ 83.05
10	DE81-08820A		Bracket   (Replaces: 701040)	1			$ 254.60
11	DE81-04431A		Block   (Replaces: 701115)				$ 429.75
12	701035		Fuse, 250v 20a				$ 94.66
13	701003		Bushing		Appelez-nous	-
14	701025		Relay		Appelez-nous	-
14	DE81-08834A		Relay   (Replaces: 701036)				$ 36.73
15	DE81-04702A		Varistor   (Replaces: 701120)				$ 402.24
16	W10124350		Not Required Part Or See Note Guide, Wave		Appelez-nous	-
17	DD81-03613A		Capacitor   (Replaces: 701097)				$ 34.51
17	DE81-04333A		Capacitor   (Replaces: 701093)				$ 100.49
19	700994		Seal				$ 29.03
20	700979		Duct		Appelez-nous	-
21	700966		Screw		Appelez-nous	-
22	701000		Gasket		Appelez-nous	-
23	701022		Nut Hex		Appelez-nous	-
24	701154		Magnetron		Appelez-nous	-
24	00701074		Magnetron   (Replaces: 701074)				$ 305.85
25	DE81-04237A		Wire Kit   (Replaces: 700973)				$ 391.00
26	DE81-04916A		Fan Blade   (Replaces: 700980)				$ 1,139.87
27	DE81-06300A		Mount   (Replaces: 701092)				$ 111.27
28	701155		Nut		Appelez-nous	-
29	DE81-05724A		Motor   (Replaces: 701108)				$ 544.84
29	701066		Motor		Appelez-nous	-
30	701146		Clip		Appelez-nous	-
31	701011		Wire		Appelez-nous	-
32	701016		Tie		Appelez-nous	-
33	701001		Deflector		Appelez-nous	-
34	701126		Clip		Appelez-nous	-
35	701009		Fastener		Appelez-nous	-
36	700965		Screw		Appelez-nous	-
37	700989		Thermostat				$ 199.34
38	701156		Screw		Appelez-nous	-
39	701148		Clip		Appelez-nous	-
40	701132		Transformer		Appelez-nous	-
41	DE81-04891A		Relay   (Replaces: 701087)				$ 530.73
41	DE81-05103A		Relay   (Replaces: 701085)				$ 267.35
42	Y701086		Relay		Appelez-nous	-
42	Y701088		Relay		Appelez-nous	-
43	DE81-08884A		Power Supply   (Replaces: 701139)				$ 586.55
44	DE81-05955A		Mic-computer   (Replaces: 701136)				$ 352.52
45	WP486754		Screw   (Replaces: Y700964)				$ 6.75
47	DE81-03939A		Spacer   (Replaces: 701110)				$ 80.35
48	DE81-05656A		Shield   (Replaces: 701091)				$ 200.67
49	701094		Shield		Appelez-nous	-
51	700963		Lockwasher		Appelez-nous	-
52	DE81-03869A		Shield   (Replaces: 701096)				$ 416.70
53	701095		Fastener				$ 12.82
