View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

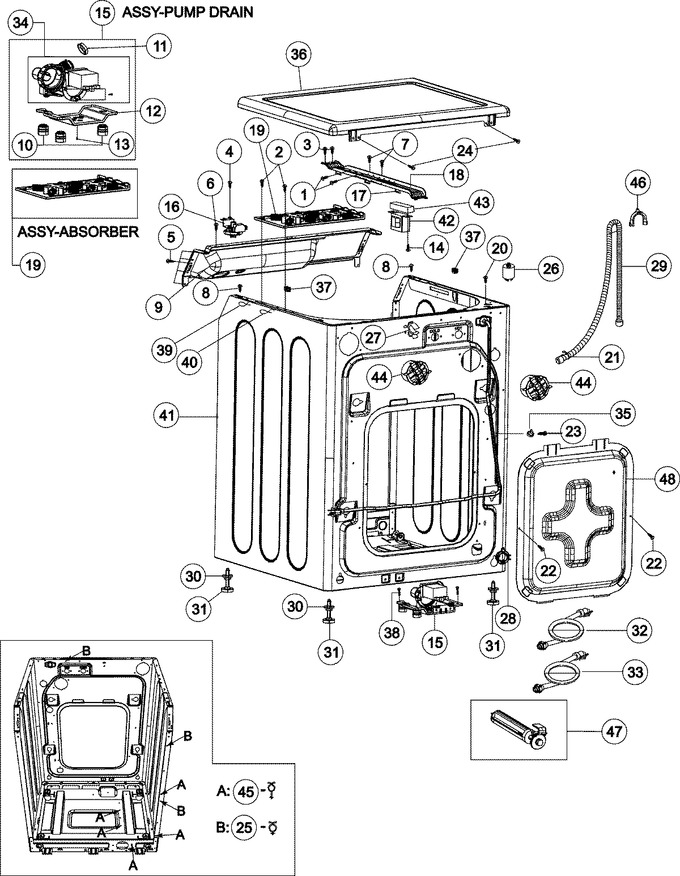

01 - Cabinet
02 - Control Panel, Dispenser
03 - Door
04 - Supplemental Information
05 - Tub - Front
06 - Tub Back
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 2 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 3 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 4 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 5 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 6 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 7 | WP98008545 | Screw-tapping (Replaces: 34001232) | 10 |
|
$ 15.94 | ||||
| 8 | 34001317 | Screw-special | 10 |
|
- | ||||
| 9 | 34001318 | Frame-plate-(u) Cabinet | 10 |
|
- | ||||
| 10 | 34001323 | Cushion-pump | 10 |
|
$ 60.64 | ||||
| 11 | 34001322 | Valve-check | 10 |
|
$ 5.70 | ||||
| 12 | 34001321 | Bracket-pump | 10 |
|
- | ||||
| 13 | WP98008545 | Screw-tapping (Replaces: 34001232) | 10 |
|
$ 15.94 | ||||
| 14 | 34001231 | Screw-tapping | 10 |
|
$ 4.83 | ||||
| 15 | WP34001320 | Assy-pump Drain (Replaces: 34001320) | 10 |
|
Immediately | $ 241.52 | |||
| 16 | 34001324 | Assy-sensor Pressure | 10 |
|
$ 77.95 | ||||
| 17 | 34001325 | Holder-wire Saddle | 10 |
|
- | ||||
| 18 | 34001326 | Guide-wire | 10 |
|
- | ||||
| 19 | 34001417 | Assy-absorber | 10 |
|
- | ||||
| 20 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 21 | WP596669 | Clip-hose (Replaces: 34001161) | 10 |
|
Immediately | $ 7.56 | |||
| 22 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 23 | WP98008545 | Screw-tapping (Replaces: 34001232) | 10 |
|
$ 15.94 | ||||
| 24 | 34001328 | Screw-hex | 10 |
|
- | ||||
| 25 | 34001329 | Cable Clamp | 10 |
|
$ 11.33 | ||||
| 26 | 555555 | Filter-emi (Replaces: 34001330) | 10 |
|
$ 151.94 | ||||
| 27 | 34001331 | Clamper Hose | 10 |
|
- | ||||
| 28 | 34001200 | Guide-hose | 10 |
|
- | ||||
| 28 | 34001500 | Guide Hose | 18 |
|
- | ||||
| 29 | 34001095 | Assy-hose Drain | 10 |
|
$ 83.92 | ||||
| 30 | 34001389 | Nut-hexagon Flange | 10 |
|
$ 5.70 | ||||
| 31 | 34001341 | Leg-rubber | 10 |
|
$ 11.96 | ||||
| 32 | 34001089 | Assy-hose Water (hot) | 10 |
|
$ 41.43 | ||||
| 33 | 34001094 | Assy-hose Water (cold) | 10 |
|
$ 110.34 | ||||
| 34 | WP34001340 | Assy-s Pump (Replaces: 34001340) | 10 |
|
Immediately | $ 127.40 | |||
| 35 | 34001299 | Clamper Hose | 10 |
|
$ 11.33 | ||||
| 36 | 34001332 | Assy-cover Top | 10 |
|
- | ||||
| 37 | 34001097 | Guide-spring - Washer Only | 10 |
|
$ 18.96 | ||||
| 38 | 34001388 | Bolt-hex | 10 |
|
$ 23.87 | ||||
| 39 | WPW10339879 | Wire Tie - Vinyl (Replaces: 34001229) | 10 |
|
$ 7.11 | ||||
| 40 | WPW10339879 | Wire Tie - Vinyl (Replaces: 34001229) | 10 |
|
$ 7.11 | ||||
| 41 | 34001339 | Assy-frame Lu | 10 |
|
- | ||||
| 42 | 34001333 | Trans-reactorv | 10 |
|
$ 80.78 | ||||
| 43 | 34001334 | Bracket-heater | 10 |
|
- | ||||
| 44 | 34001335 | Assy-cap O.f. | 10 |
|
- | ||||
| 45 | 34001501 | Holder Wire | 18 |
|
- | ||||
| 45 | 35001004 | Holder-wire (retainer/clip) | 10 |
|
- | ||||
| 46 | 34001336 | Hose-hanger | 10 |
|
- | ||||
| 47 | 34001337 | Assy-fixer Tub | 10 |
|
- | ||||
| 48 | 34001338 | Assy-cover Back | 10 |
|
- |
