SELECT A DIAGRAM

01 - Cabinet

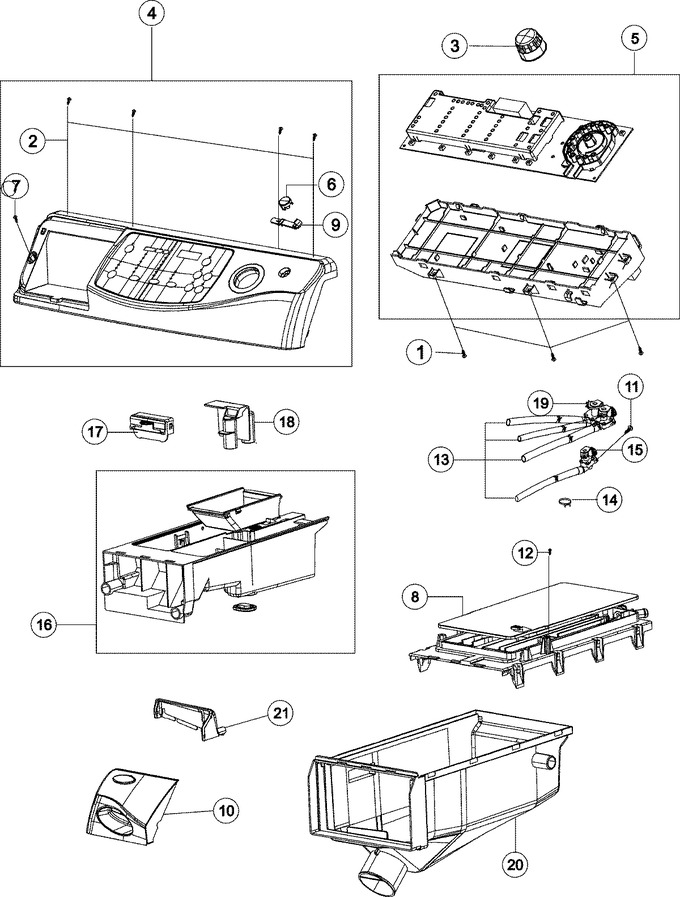

02 - Control Panel, Dispenser


03 - Door


04 - Supplemental Information


05 - Tub - Front


06 - Tub Back


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001231		Screw-tapping	10			$ 4.83
2	WP98008545		Screw-tapping   (Replaces: 34001232)	10			$ 15.94
3	34001233		Knob-encoder	10			$ 18.49
4	34001402		Assy-panel Control	10	Appelez-nous	-
5	34001484		Pcb (mems) Sensor Dno	16			$ 119.23
5	34001485		Harness, Wire Dno	16	Appelez-nous	-
5	34001398		Pcb Assembly (8700) Dno	11	Appelez-nous	-
5	34001483		Pcb-mah8700 (series 16) Dno	16	Appelez-nous	-
5	34001498		Control Board (8700)	17			$ 375.86
5	34001472		Serv Asy Pcb Part-8700 V401	15	Appelez-nous	-
5	34001478		Control Board (v400)	12			$ 396.90
5	34001404		Assy Pcb Parts	10	Appelez-nous	-
6	34001235		Button-push (p)	10			$ 27.54
7	6002-001006		Screw-tapping;th,+,2s,m4,l12,-	10			$ 0.85
8	WP34001284		Assy-s Housing Drawer   (Replaces: 34001284)	10			$ 100.19
9	34001279		Lever-power	10	Appelez-nous	-
10	34001283		Assy-s Panel-drawer	10	Appelez-nous	-
11	34001250		Screw-taptite	10	Appelez-nous	-
12	WP98008545		Screw-tapping   (Replaces: 34001232)	10			$ 15.94
13	34001249		Hose-drawer	10	Appelez-nous	-
14	WP596669		Clamp-hose   (Replaces: 34001208)	10		Immediately	$ 7.56
15	WP34001131		Valve-water (hot)   (Replaces: 34001131)	10		Immediately	$ 161.34
16	34001282		Assy-s. Body Drawer	10	Appelez-nous	-
17	34001239		Guide-liquid	10	Appelez-nous	-
18	34001240		Cap-rinse	10	Appelez-nous	-
19	34001248		Water Valve (3 Way)	10			$ 101.76
20	WP34001245		Housing-drawer (l)   (Replaces: 34001245)	10			$ 120.07
21	34001243		Handle-drawer	10			$ 32.02

    View Diagram in Separate Window       Print Part List
