SELECT A DIAGRAM

01 - Cabinet


02 - Control Panel, Dispenser


03 - Door


04 - Supplemental Information


05 - Tub - Front


06 - Tub Back

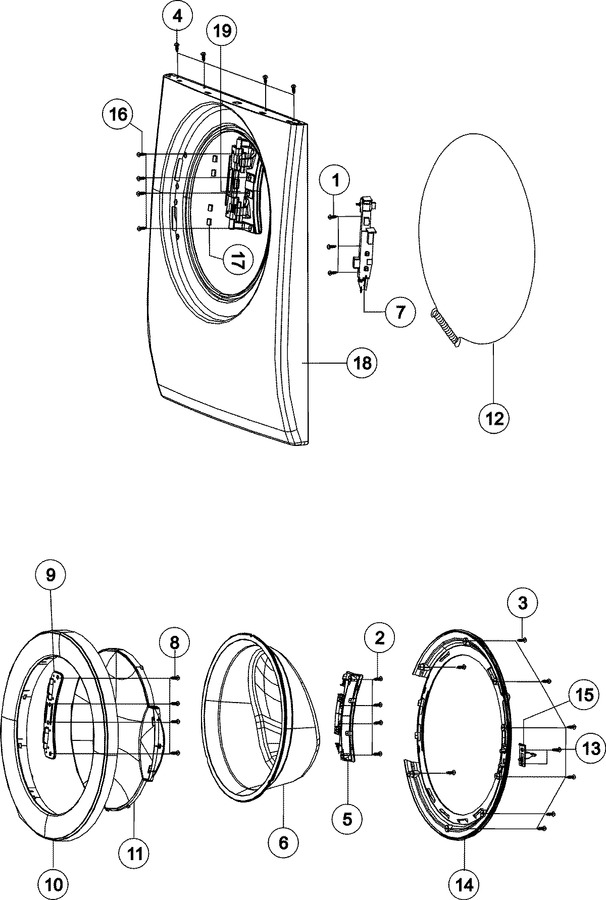

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001251		Screw-tapping	10	Appelez-nous	-
2	34001251		Screw-tapping	10	Appelez-nous	-
3	34001251		Screw-tapping	10	Appelez-nous	-
4	34001252		Screw-tapping	10	Appelez-nous	-
5	34001253		Guide-holder Glass	10	Appelez-nous	-
6	34001254		Door-glass	10	Appelez-nous	-
7	WP8182634		Door-lock S/w   (Replaces: 34001265)	10		Immediately	$ 97.07
8	WP98008545		Screw-tapping   (Replaces: 34001232)	10			$ 15.94
9	34001255		Bracket-holder	10			$ 26.81
10	34001256		Cover-door	10			$ 152.92
11	34001257		Door Safety	10			$ 131.78
12	34001266		Assy-wire Diaphragm	10			$ 20.71
13	34001259		Screw-tapping	10			$ 6.09
14	34001285		Holder-glass	10			$ 99.68
15	WP34001260		Lever-door   (Replaces: 34001260)	10		Immediately	$ 61.64
16	34001286		Screw-machine	10	Appelez-nous	-
17	34001262		Guide-bar	10	Appelez-nous	-
18	34001467		Front Panel (white)	14	Appelez-nous	-
18	34001263		Frame-front Lu	10	Appelez-nous	-
19	34001264		Assy-hinge	10			$ 164.30

    View Diagram in Separate Window       Print Part List
