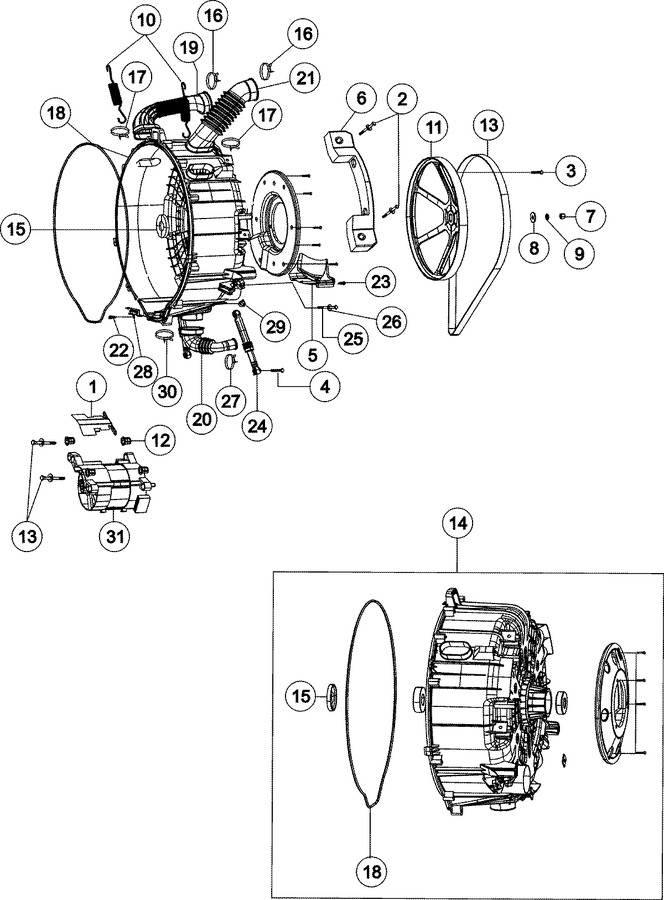

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001415		Cover-motor	10	Appelez-nous	-
2	34001158		Assy-bolt	10			$ 49.95
3	34001268		Bolt-etc	10	Appelez-nous	-
4	34001147		Bolt/screw-pump Bracket	10			$ 40.75
5	34001414		Bracket-tub	10	Appelez-nous	-
6	34001413		Weight-balancer	10	Appelez-nous	-
7	34001271		Nut-hex	10			$ 11.59
8	23001282		Washer-plain   (Replaces: 34001406)	10			$ 15.36
9	34001273		Washer-spring	10	Appelez-nous	-
10	34001274		Spring-hanger	10			$ 30.62
11	34001412		Pulley	10			$ 92.98
12	34001157		Bushing-motor	10			$ 13.35
13	34001411		Belt-timing Gear	10			$ 58.15
13	34001158		Assy-bolt	10			$ 49.95
14	WP34001439		Assy-semi Tub Back   (Replaces: 34001439)	10			$ 333.37
14	34001458		Outer Tub, Rear	15			$ 91.14
15	34001462		Seal-oil	12			$ 13.77
15	34001408		Seal-oil	10			$ 28.11
16	34001298		Band-ring	10	Appelez-nous	-
17	34001297		Band-ring	10	Appelez-nous	-
18	34001296		Packing-tub	10			$ 41.65
19	WP34001294		Hose-drain   (Replaces: 34001294)	10			$ 54.72
20	WP34001294		Hose-drain   (Replaces: 34001294)	10			$ 54.72
21	34001293		Hose-o.f.	10			$ 48.09
22	34001251		Screw-tapping	10	Appelez-nous	-
23	WP98008545		Screw-tapping   (Replaces: 34001232)	10			$ 15.94
24	WP34001292		Damper-shock   (Replaces: 34001292)	10			$ 118.82
25	34001148		Bolt-hex	10			$ 14.23
26	DC60-60044A		Washer-plain   (Replaces: 34001272)	10			$ 1.66
27	WP596669		Clip-hose   (Replaces: 34001161)	10		Immediately	$ 7.56
28	34001290		Bracket - Heater	10	Appelez-nous	-
29	34001291		Cable Clamp	10	Appelez-nous	-
30	34001289		Clamper-hose	10			$ 26.20
31	34001405		Motor-drum	10	Appelez-nous	-
