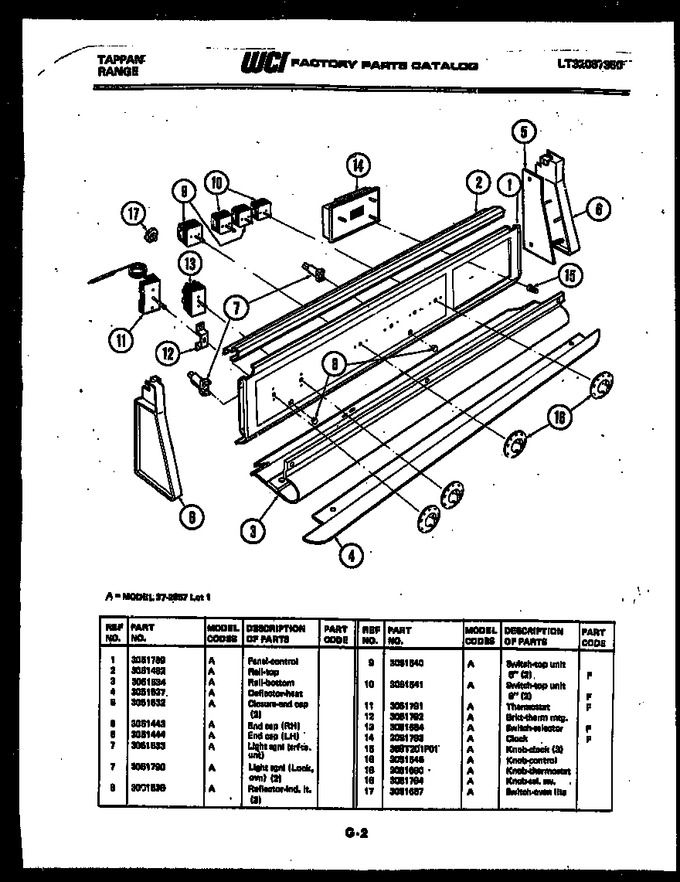

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Parts
05 - Drawer Parts
06 - Door Parts
07 - Body Parts
08 - Backguard
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051789 | Panel-control |
|
- | |||||
| 2 | 3051482 | Rail, Top |
|
- | |||||
| 3 | 3051534 | Rail-bottom |
|
- | |||||
| 4 | 3051537 | Deflector-heat |
|
- | |||||
| 5 | 3051532 | Closure-end Cap (2) |
|
- | |||||
| 6 | 3051443 | End Cap (rh) |
|
- | |||||
| 6 | 3051444 | End Cap (lh) |
|
- | |||||
| 7 | 3051533 | Light Sgnl (srfce. Unit) |
|
- | |||||
| 7 | 3051790 | Light Sgnl (lock, Ovn) (2) |
|
- | |||||
| 8 | 3051538 | Reflector-ind, It. (3) |
|
- | |||||
| 9 | 3051540 | Switch-top Unit 6`` (2) |
|
- | |||||
| 10 | 3051541 | Switch-top Unit 8`` (2) |
|
- | |||||
| 11 | 3051791 | Thermostat |
|
- | |||||
| 12 | 3051792 | Brkt-therm Mtg. |
|
- | |||||
| 13 | 3051684 | Switch-selector |
|
- | |||||
| 14 | 3051793 | Clock |
|
- | |||||
| 15 | 358T201P01 | Knob, Clock (3) |
|
- | |||||
| 16 | 3051690 | Knob-thermostat |
|
- | |||||
| 16 | 3051546 | Knob-control |
|
- | |||||
| 16 | 3051794 | Knob-sel. Sw. |
|
- | |||||
| 17 | 3051687 | Switch-oven Lite |
|
- |
