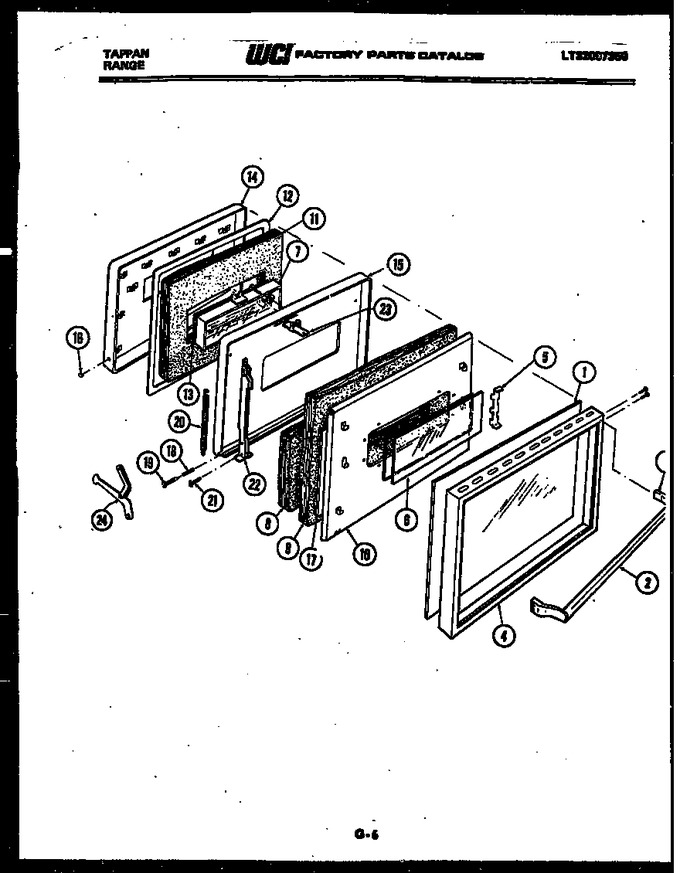

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051491		Glass-outer		Appelez-nous	-
2	3051809		Handle		Appelez-nous	-
3	3051808		Cap-end (2)		Appelez-nous	-
4	3051715		Trim-frame		Appelez-nous	-
5	3051714		Retainer, Glass (2)		Appelez-nous	-
6	3051713		Glass - Inner		Appelez-nous	-
7	3051705		Glass-package		Appelez-nous	-
8	3051710		Insul.-door Liner		Appelez-nous	-
9	3051711		Insul.-heat Shield		Appelez-nous	-
10	3051712		Shield-heat		Appelez-nous	-
11	3051703		Insul.-door Shield		Appelez-nous	-
12	3051704		Seal-door		Appelez-nous	-
13	3051706		Seal Window		Appelez-nous	-
14	3051702		Liner-shield		Appelez-nous	-
15	3051701		Liner-door		Appelez-nous	-
16	3051807		Button Plug		Appelez-nous	-
17	3051862		Foil, Aluminum		Appelez-nous	-
18	3051566		Roller (2)		Appelez-nous	-
19	3051567		Rivet (2)		Appelez-nous	-
20	3051709		Spring (2)		Appelez-nous	-
21	3051572		Axle		Appelez-nous	-
22	3051822		Channel-hng Assy		Appelez-nous	-
23	3051707		Strike		Appelez-nous	-
24	3051568		Dr Hnge Arm (2)		Appelez-nous	-
