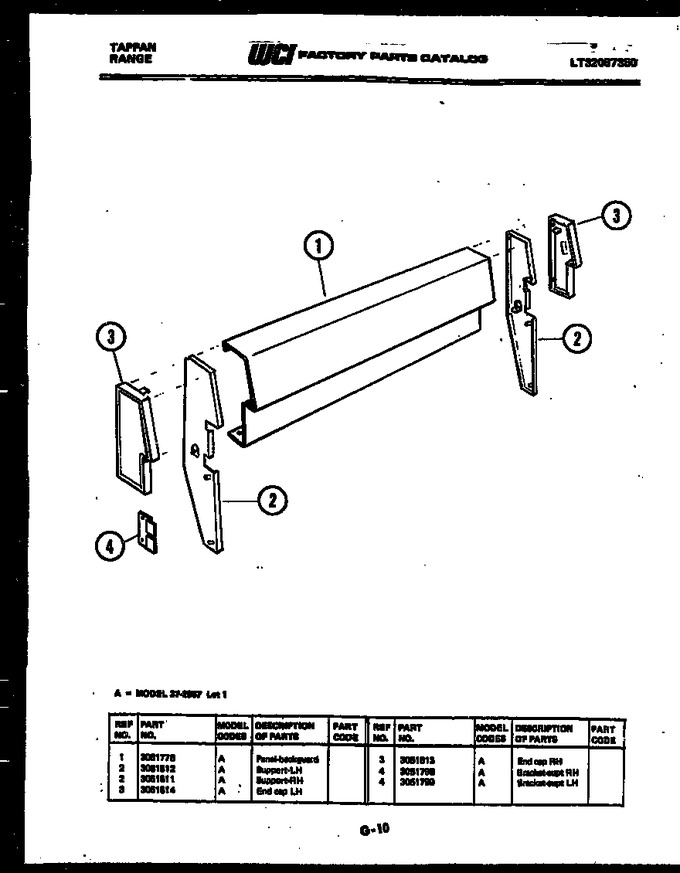

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051778 | Panel-backguard |
|
- | |||||
| 2 | 3051811 | Support-rh |
|
- | |||||
| 2 | 3051812 | Support-lh |
|
- | |||||
| 3 | 3051813 | End Cap Rh |
|
- | |||||
| 3 | 3051814 | End Cap Lh |
|
- | |||||
| 4 | 3051799 | Bracket-supt Lh |
|
- | |||||
| 4 | 3051798 | Bracket-supt Rh |
|
- |
