02 - Backguard
03 - Cooktop Parts
04 - Broiler Parts
05 - Drawer Parts
06 - Door Parts
07 - Body Parts
08 - Backguard
SELECT A DIAGRAM
New Model Search:

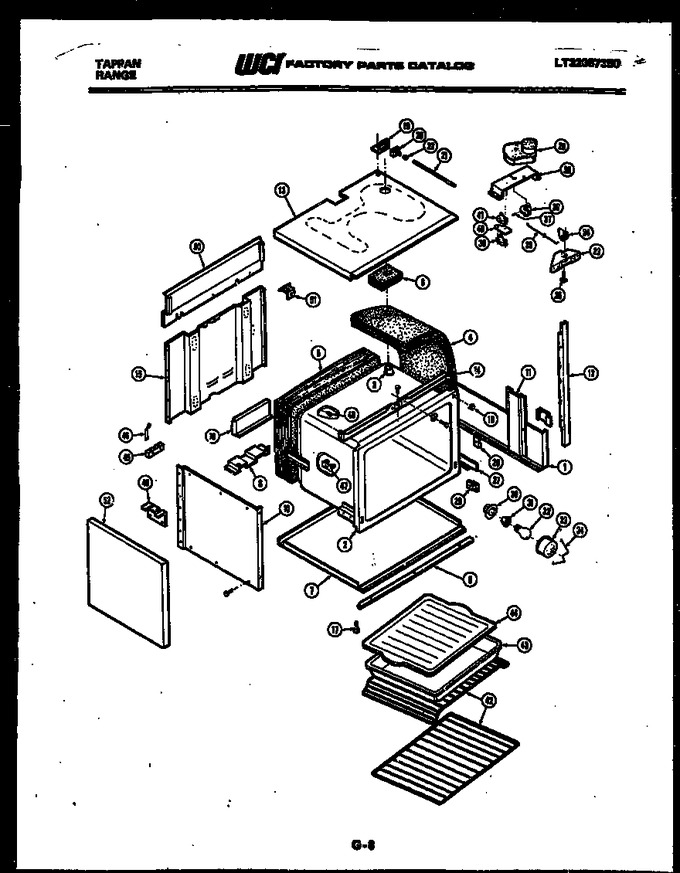

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051781 | Panel-side Lwr Lh |
|
- | |||||
| 1 | 3051780 | Panel-side Lwr Rh |
|
- | |||||
| 2 | 3051510 | Body |
|
- | |||||
| 3 | 3051773 | Vent Tube |
|
- | |||||
| 4 | 3051628 | Insul-oven Wrap |
|
- | |||||
| 5 | 3051630 | Insulation-back |
|
- | |||||
| 6 | 3051523 | Insul.-vent Tube |
|
- | |||||
| 7 | 3051774 | Shield-insul. Btm |
|
- | |||||
| 8 | 3051525 | Plate-mounting |
|
- | |||||
| 9 | 3051775 | Channel-oven |
|
- | |||||
| 10 | 3051526 | Shield-insul. (2) |
|
- | |||||
| 11 | 3051776 | Support-frnt (2) |
|
- | |||||
| 12 | 3051777 | Trim-ovn Frnt (2) |
|
- | |||||
| 13 | 3051782 | Shield-insul. Top |
|
- | |||||
| 14 | 3051783 | Support-cooktop |
|
- | |||||
| 15 | 3051530 | Back-range |
|
- | |||||
| 16 | 3051634 | Shield-heat |
|
- | |||||
| 17 | 3051639 | Screw-leveling (4) |
|
- | |||||
| 18 | 3051784 | Button - Plug |
|
- | |||||
| 19 | 3051643 | Bracket-door Sw |
|
- | |||||
| 20 | 3051644 | Switch-door |
|
- | |||||
| 21 | 3051645 | Rod-switch |
|
- | |||||
| 22 | 3051646 | Cap-end Switch |
|
- | |||||
| 23 | 3051647 | Housing, Latch |
|
- | |||||
| 24 | 3051648 | Latch-door |
|
- | |||||
| 25 | 3051572 | Axle |
|
- | |||||
| 26 | 3051650 | Latch-motor |
|
- | |||||
| 27 | 3051651 | Glide-drawer-rh |
|
- | |||||
| 27 | 3051652 | Glide-drawer Lh |
|
- | |||||
| 28 | 3051653 | Spacer-drwr Glide (2) |
|
- | |||||
| 29 | 3051654 | Glide, Front (2) |
|
- | |||||
| 30 | 3051511 | Housing-ov. Lite |
|
$ 60.22 | |||||
| 31 | 3051512 | Receptacle-light |
|
- | |||||
| 32 | 3051513 | Light Bulb |
|
- | |||||
| 33 | 3051514 | Lens-oven Light |
|
- | |||||
| 34 | 3051515 | Retainr-wire-lens |
|
- | |||||
| 35 | 3051878 | Support-motor |
|
- | |||||
| 36 | 3051879 | Cam-door Latch |
|
- | |||||
| 37 | 3051880 | Pin |
|
- | |||||
| 38 | 3051649 | Tie Bar |
|
- | |||||
| 39 | 3051740 | Switch, Lower |
|
- | |||||
| 40 | 3051681 | Insulator |
|
- | |||||
| 41 | 3051741 | Switch, Upper |
|
- | |||||
| 42 | 3051474 | Rack-oven |
|
- | |||||
| 42 | 3051493 | Rack-oven Offset |
|
- | |||||
| 43 | 3051563 | Pan-broiler |
|
- | |||||
| 44 | 3051562 | Insert-broiler Pan |
|
- | |||||
| 45 | 3051560 | Block-terminal |
|
- | |||||
| 46 | 3051805 | Strap-ground |
|
- | |||||
| 47 | 3051552 | Bracket Therm Blb |
|
- | |||||
| 48 | 3051796 | Button-plug |
|
- | |||||
| 49 | 3051801 | Brackt-end Pnl (2) |
|
- | |||||
| 50 | 3051555 | Back-range Upper |
|
- | |||||
| 51 | 3051800 | Brackt-hng Supt |
|
- | |||||
| 52 | 3051498 | Panel-side Rh Blck |
|
- | |||||
| 52 | 3051499 | Panel-side Lh Blck |
|
- |
