SELECT A DIAGRAM
New Model Search:

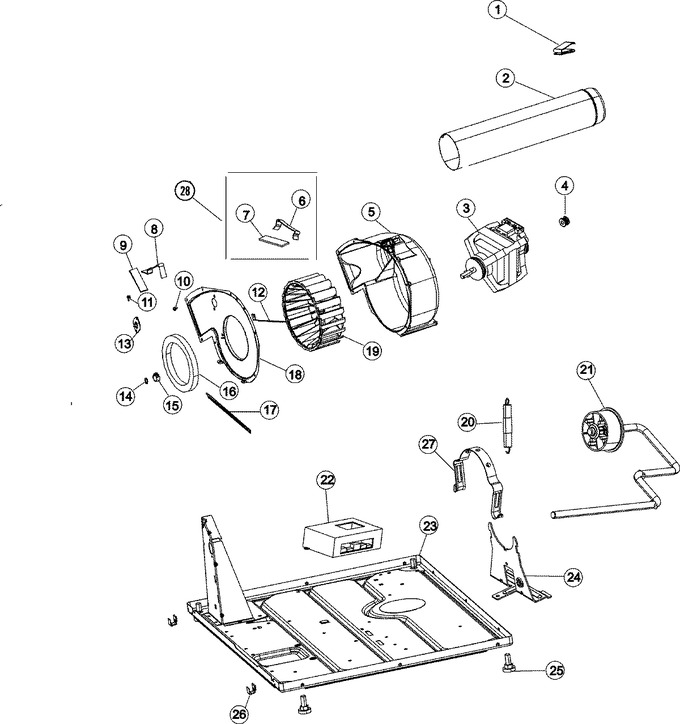

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001572 | Clip, Vent Pipe Ground | 10 |
|
- | ||||
| 2 | 53-0134 | Duct, Exhaust | 10 |
|
- | ||||
| 3 | W10410996 | Motor (115v-60hz 1/3hp) (Replaces: 31001589) | 10 |
|
Immediately | $ 274.59 | |||
| 4 | WP31001535 | Pulley, Motor (60hz) (Replaces: 31001535) | 10 |
|
Immediately | $ 78.86 | |||
| 5 | 53-1801 | Housing, Blower | 10 |
|
- | ||||
| 6 | WP31001470 | Glide, Tumbler (lt) (Replaces: 31001470) | 10 |
|
$ 67.36 | ||||
| 7 | WP31001356 | Pad, Glide (Replaces: 31001356) | 10 |
|
$ 76.16 | ||||
| 8 | WP31001469 | Glide, Tumbler (rt) (Replaces: 31001469) | 10 |
|
$ 66.66 | ||||
| 9 | WP31001356 | Pad, Glide (Replaces: 31001356) | 10 |
|
$ 76.16 | ||||
| 10 | WP90767 | Screw (Replaces: 31001267) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | WP489478 | Screw (Replaces: 25-7890) | 10 |
|
$ 6.98 | ||||
| 12 | 53-1026 | Guide, Vane Inlet | 10 |
|
- | ||||
| 13 | WP31001590 | Thermistor, Temp Control (Replaces: 31001590) | 10 |
|
$ 98.65 | ||||
| 14 | 25-7855 | Ring, Retaining | 10 |
|
$ 8.67 | ||||
| 15 | WP312967 | Clamp (Replaces: 25-7823) | 10 |
|
Immediately | $ 10.68 | |||
| 16 | 31001541 | Seal, Blower/collector Duct | 10 |
|
$ 24.55 | ||||
| 17 | 53-1625 | Brace, Tumbler Support | 10 |
|
$ 26.64 | ||||
| 18 | 53-1934 | Cover, Blower Housing | 10 |
|
- | ||||
| 19 | W11497304 | Wheel, Blower (deepd) (Replaces: 31001317) | 10 |
|
Immediately | $ 68.16 | |||
| 20 | 31001465 | Spring, Idler | 10 |
|
$ 46.05 | ||||
| 21 | 31001571 | Screw, 10-24x0700 Hxwshrhd Ty | 10 |
|
- | ||||
| 21 | 31001710 | Idler Arm Assembly | 10 |
|
$ 38.72 | ||||
| 22 | 53-4643 | Relay Board Asy | 12 |
|
$ 137.62 | ||||
| 22 | WP489478 | Screw (Replaces: 25-7890) | 10 |
|
$ 6.98 | ||||
| 22 | 31001561 | Relay Board Assembly | 10 |
|
- | ||||
| 23 | 31001586 | Base Assembly | 10 |
|
- | ||||
| 23 | 31001569 | Washer, 1/2`` | 10 |
|
- | ||||
| 24 | 31001570 | Bracket, Motor | 10 |
|
$ 7.92 | ||||
| 24 | WP681414 | Screw (Replaces: 25-7732) | 10 |
|
Immediately | $ 7.07 | |||
| 25 | 35-3507 | Foot & Pad Assy | 10 |
|
- | ||||
| 26 | 53-0120 | Clip, Front Panel | 10 |
|
$ 11.32 | ||||
| 27 | WP660658 | Clamp, Motor (Replaces: 53-0214) | 10 |
|
$ 7.05 | ||||
| 28 | LA-1006 | Glide Kit, Tumbler | 10 |
|
Immediately | $ 25.12 |
