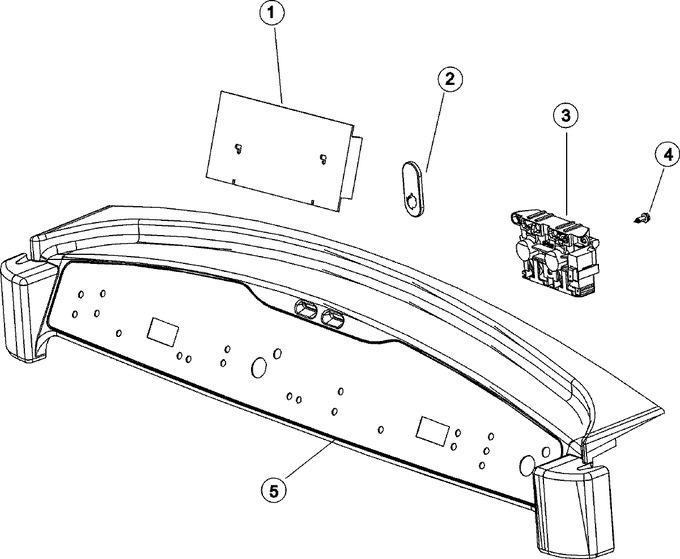

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001562		Logic Board (control)	10			$ 271.02
2	31001659		Clip, Retaining	10	Appelez-nous	-
3	31001565		Door Latch Assembly (upper)	10	Appelez-nous	-
4	WP3400806		Screw, No.8 Shtmtl 1-1/4 Torx   (Replaces: 31001610)	10			$ 6.94
5	31001660		Console W/membrane Pad (bsq)	10	Appelez-nous	-
6	31001662		Harness, Upper Door Switch	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
