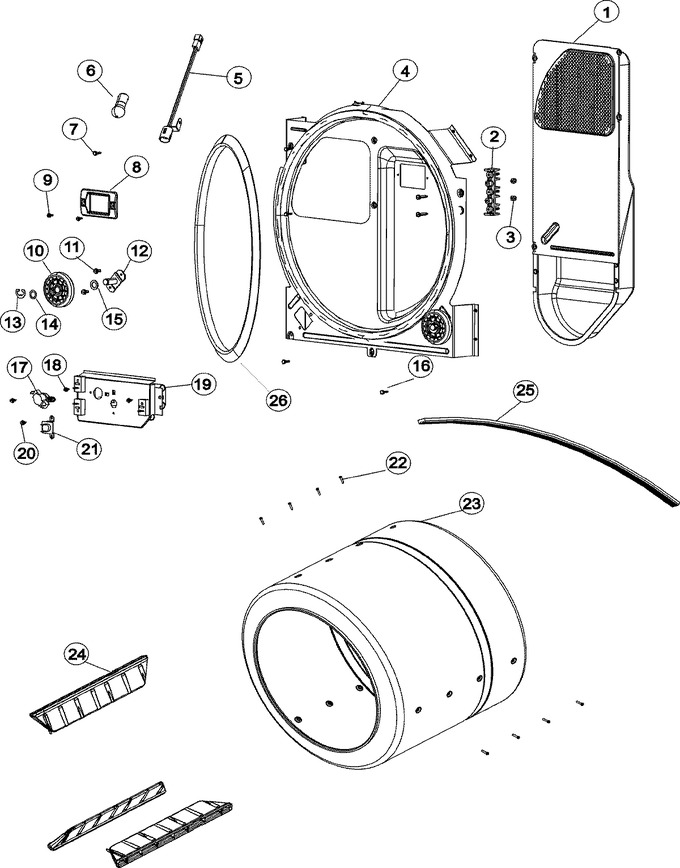

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001587 | Heater Housing Assembly | 10 |
|
- | ||||
| 1 | 25-7819 | Screw No.8-18x1/2 Pan Hd | 10 |
|
- | ||||
| 2 | WP3400074 | Screw (Replaces: 25-7952) | 10 |
|
$ 6.47 | ||||
| 2 | 53-0965 | Strap, Ground | 10 |
|
- | ||||
| 2 | 53-1518 | Block, Terminal | 10 |
|
$ 29.01 | ||||
| 3 | WPW10131078 | Nut, Lock W/nylon Insert (Replaces: 21001837) | 10 |
|
$ 4.00 | ||||
| 4 | 31001581 | Bulkhead With Seal | 10 |
|
- | ||||
| 5 | 31001579 | Receptacle Asm, Clyinder Light | 10 |
|
- | ||||
| 6 | 31001575 | Bulb, Cylinder Light | 10 |
|
$ 5.83 | ||||
| 7 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 8 | 31001585 | Lens, Cylinder Light | 10 |
|
- | ||||
| 9 | 31001580 | Screw, 6-32 Hex Washer Head | 10 |
|
- | ||||
| 10 | 31001096 | Roller (rear) | 10 |
|
$ 50.12 | ||||
| 11 | WP3351614 | Screw (Replaces: 25-7101) | 10 |
|
Immediately | $ 6.26 | |||
| 12 | WP53-0197 | Support Assy.-cylinder Rear (Replaces: 53-0197) | 10 |
|
$ 81.21 | ||||
| 13 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) | 10 |
|
$ 10.68 | ||||
| 14 | 25-7814 | Washer | 10 |
|
$ 5.33 | ||||
| 15 | 31001583 | Spacer, Roller | 10 |
|
$ 5.27 | ||||
| 16 | 25-7819 | Screw No.8-18x1/2 Pan Hd | 10 |
|
- | ||||
| 17 | 31001689 | Thermostat, Hi Limit | 10 |
|
$ 43.69 | ||||
| 17 | WP90767 | Screw (Replaces: 31001267) | 10 |
|
Immediately | $ 7.04 | |||
| 18 | WP90767 | Screw (Replaces: 31001267) | 10 |
|
Immediately | $ 7.04 | |||
| 19 | 31001588 | Heater Element & Bracket | 10 |
|
- | ||||
| 19 | 31001691 | Wire, Heater Jumper | 10 |
|
- | ||||
| 20 | WP90767 | Screw (Replaces: 31001267) | 10 |
|
Immediately | $ 7.04 | |||
| 21 | 31001690 | Fuse, Thermal (1 Shot) | 10 |
|
$ 33.47 | ||||
| 22 | WP3196164 | Screw (Replaces: 25-7759) | 10 |
|
Immediately | $ 7.82 | |||
| 23 | 53-1250 | Cylinder (w/baffle) | 10 |
|
- | ||||
| 24 | 53-1249 | Baffle, White | 10 |
|
- | ||||
| 25 | 341241 | Belt, Cylinder (Replaces: 31531589) | 10 |
|
Immediately | $ 16.34 | |||
| 26 | WP31001747 | Seal Assembly (rear) (Replaces: 31001548) | 10 |
|
$ 30.87 |
