SELECT A DIAGRAM

01 - Base, Motor & Blower


02 - Cabinet, Upper & Lower


03 - Control Panel


04 - Cylinder, Heater & Bulkhead


05 - Front Panel & Lower Doors


06 - Liner, Steamer & Reservoir


07 - Shaker, Hangers & Racks


08 - Supplemental Information


09 - Upper Door


10 - Wiring Information

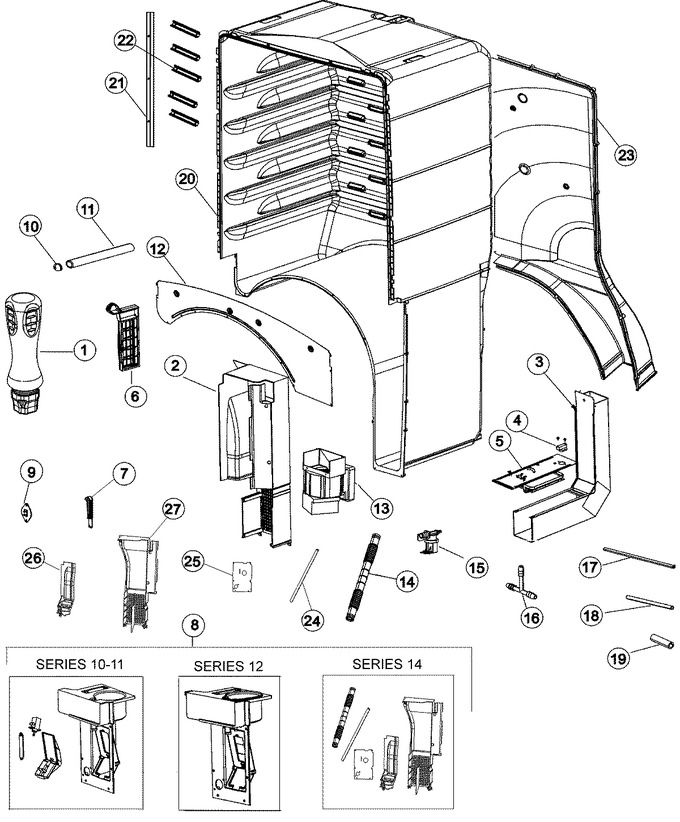

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001684		Bottle, Reservoir Water	10	Appelez-nous	-
2	31001623		Air Duct, Return	10	Appelez-nous	-
3	31001604		Hot Air Duct Assembly	10	Appelez-nous	-
4	WP90767		Screw, Abno.8-18x3/8 Hxws   (Replaces: 31001721)	10		Immediately	$ 7.04
4	31001630		Thermostat, Steamer	10			$ 59.41
5	31001666		Heater/steamer	10	Appelez-nous	-
5	31001628		Wire, Heater Jumper	10	Appelez-nous	-
5	31001664		Harness, Upper Heater/steamer	10	Appelez-nous	-
5	31001761		Harness, Upper Heater/steamer	12	Appelez-nous	-
6	31001681		Filter Frame Assembly	10	Appelez-nous	-
7	31001687		Vent, Reservoir Filter	10	Appelez-nous	-
8	12002648		Return Duct/cover Kit	14	Appelez-nous	-
8	31001760		Cover, Return Duct	12	Appelez-nous	-
8	12002336		Return Duct/damper Kit	10			$ 39.86
9	31001600		Screw, No.6 Tri-lobe 3/8 Torx	10	Appelez-nous	-
9	31001716		Thermistor, Temp Control	10			$ 40.68
10	31001603		Cap, Shelf Support	10	Appelez-nous	-
11	31001602		Rod, Shelf Support	10	Appelez-nous	-
12	31001596		Top, Front Liner Cover	10	Appelez-nous	-
12	31001705		Screw. No.8-18x1/2 Th Rl	10	Appelez-nous	-
13	31001627		Blower Assembly	10	Appelez-nous	-
13	3400826		Screw, No.8-18x3/4 Tf   (Replaces: 31001722)	10	Appelez-nous	-
14	31001631		Hose, Reservoir Valve	10	Appelez-nous	-
15	31001563		Valve, Water	10	Appelez-nous	-
16	31001720		T-connector	10	Appelez-nous	-
17	31001717		Hose (12``)	10	Appelez-nous	-
18	31001718		Hose (8.5``)	10	Appelez-nous	-
19	31001719		Hose (1.5``)	10	Appelez-nous	-
20	31001595		Liner	10	Appelez-nous	-
21	31001705		Screw. No.8-18x1/2 Th Rl	10	Appelez-nous	-
21	31001609		Tie Bar, Shelf	10	Appelez-nous	-
22	31001607		Bracket, Shelf	10	Appelez-nous	-
23	31001600		Screw, No.6 Tri-lobe 3/8 Torx	10	Appelez-nous	-
23	31001606		Plenum	10	Appelez-nous	-
24	31001632		Hose, Valve Steamer	14	Appelez-nous	-
25	31001789		Plate-return Duct Cover	14	Appelez-nous	-
26	31001787		Duct-air Return	14	Appelez-nous	-
27	31001788		Cup-return Duct	14	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
