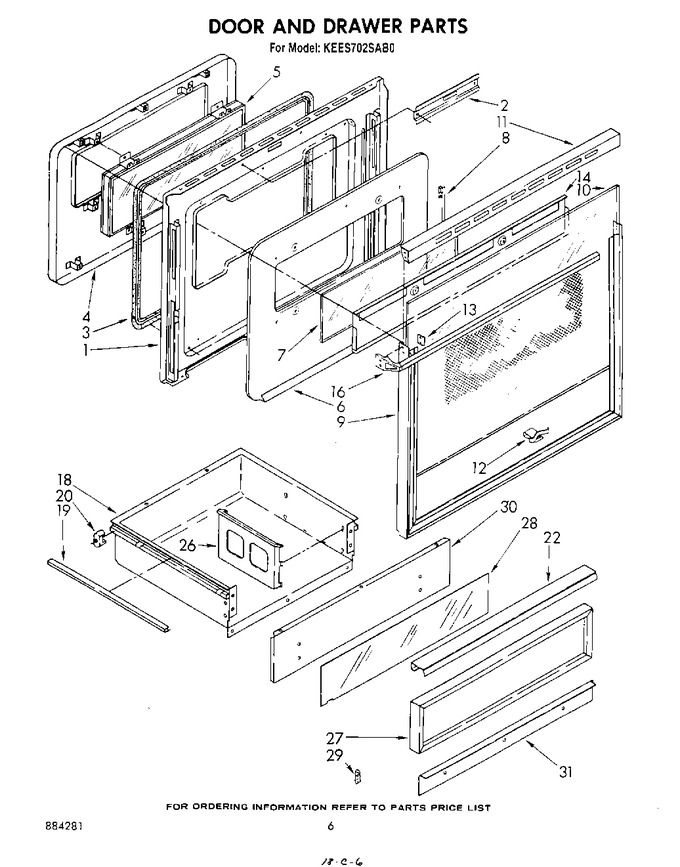

04 - Door And Drawer


05 - Oven (continued)


06 - Upper Chassis And Components


07 - Magnetron And Air Flow


08 - Cabinet And Stirrer


09 - Door And Latch


10 - Cabinet And Hinge


11 - Control Components


12 - Wiring Harness , Literature And Optional


13 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
2	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	327898		Panel, Inner		Appelez-nous	-
5	330038		Window Package		Appelez-nous	-
6	308021		Retainer, Insulation		Appelez-nous	-
7	309842		Glass		Appelez-nous	-
8	309843		Retainer		Appelez-nous	-
9	314325		Frame, Door		Appelez-nous	-
10	309069		Glass, Outer		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
11	314250		Top, Door Frame		Appelez-nous	-
12	314234		Clip, Glass (10)		Appelez-nous	-
13	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
13	314235		Clip (2)		Appelez-nous	-
14	309056		Baffle, Heat		Appelez-nous	-
16	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 6.90
16	3147636		Handle, Oven Door		Appelez-nous	-
18	330667		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
22	314321		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
26	357645		Rack, Literature		Appelez-nous	-
27	314324		Frame, Glass		Appelez-nous	-
28	314261		Drawer, Glass		Appelez-nous	-
29	314234		Clip, Glass		Appelez-nous	-
30	314259		Liner, Glass		Appelez-nous	-
31	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
31	314323		Plate, Kick		Appelez-nous	-
