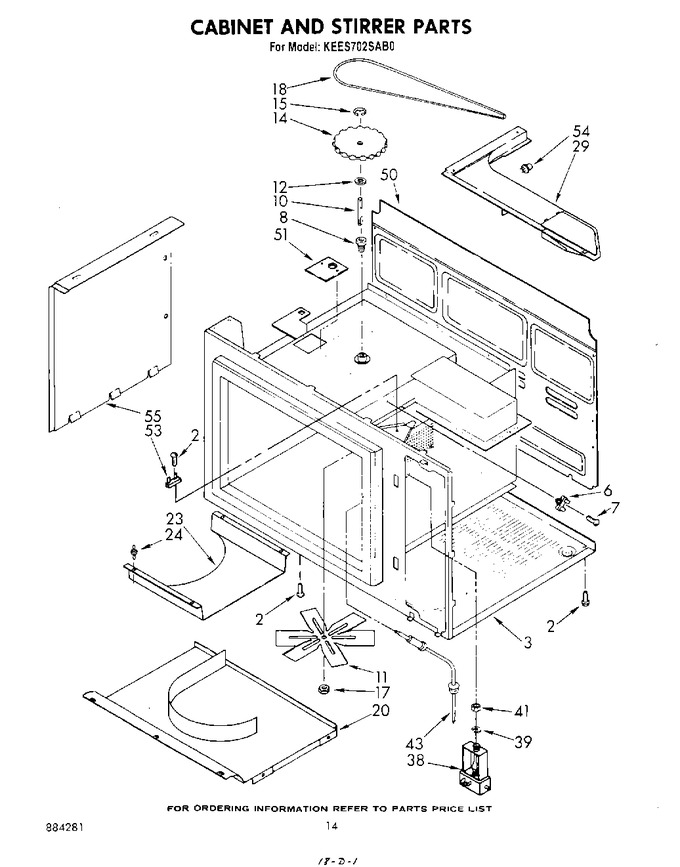

08 - Cabinet And Stirrer


09 - Door And Latch


10 - Cabinet And Hinge


11 - Control Components


12 - Wiring Harness , Literature And Optional


13 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
6	313855		Thermal Fuse (includes Illus. 7)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8 Pan Head Phillips		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
20	313563		Stirrer Cover		Appelez-nous	-
20	313816		Screw, 8-32 X 1/2		Appelez-nous	-
20	313740		Fastener (4)		Appelez-nous	-
23	313735		Plate, Tuning		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
29	3147003		Baffle, Air Exhaust		Appelez-nous	-
29	3147599		Seal, Foam		Appelez-nous	-
38	3147071		Jack, Probe		Appelez-nous	-
39	313105		Washer, Internal Lock		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
43	313044		(alt.)		Appelez-nous	-
43	313527		(alt.)		Appelez-nous	-
43	661164		Probe, Temperature		Appelez-nous	-
50	3147490		Cover, Rear		Appelez-nous	-
50	WP681414		Screw, 10-16 X 1\2 (14)   (Replaces: 343641)			Immediately	$ 7.07
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
51	313593		Cover, Light		Appelez-nous	-
53	3147275		Fuse, Thermal		Appelez-nous	-
54	3147060		Sensor, Gas		Appelez-nous	-
55	3147004		Cover, Side		Appelez-nous	-
