Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 313614 Trim, Shelf (front) Appelez-nous -
4 313615 Trim, Shelf (rear) Appelez-nous -
9 313456 Rivet (3) Appelez-nous -
10 313639 Shelf, Microwave Install With Appelez-nous -
10 WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 57.16

19 330514 Snap-in Socket Appelez-nous -
20 WP3395618 Bulb, Oven Light   (Replaces: 313969) In-Stock Immediately $ 71.33

22 WP3149478 Support, Rack (4)   (Replaces: 313653) Special Order $ 8.64

23 313663 Rack, Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

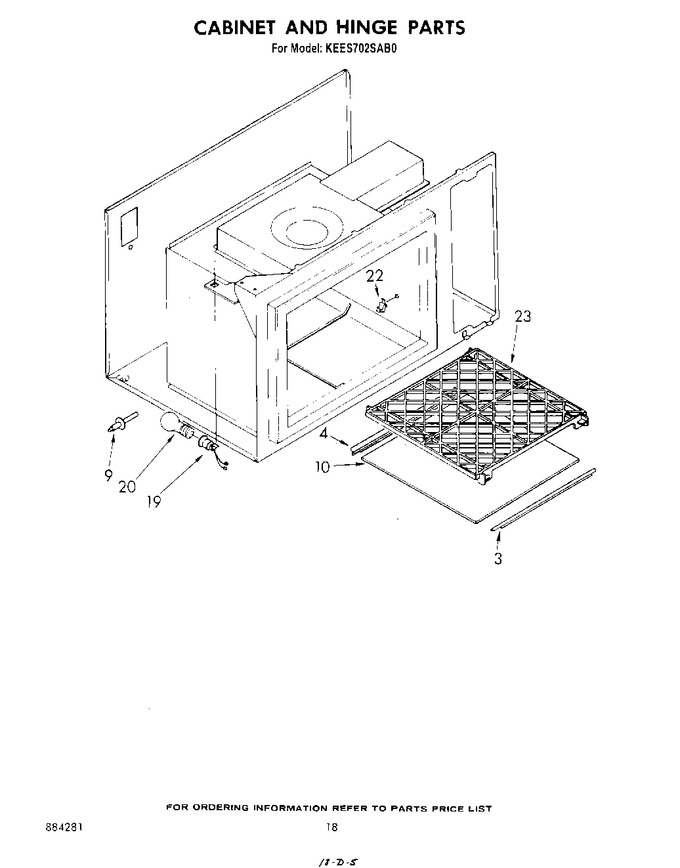

Diagram for KEES702SWB0
