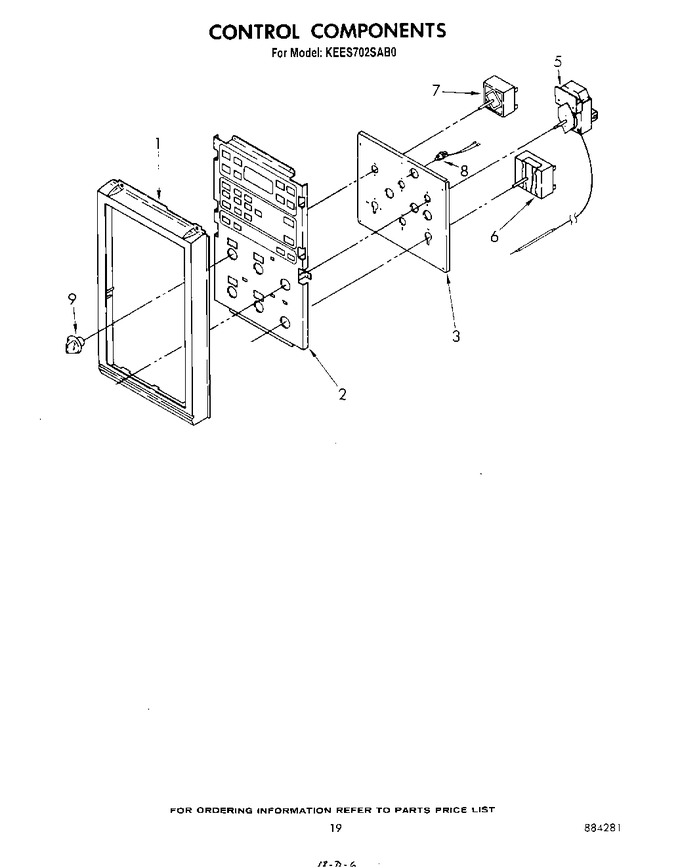

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	314088		Frame, Control Panel		Appelez-nous	-
2	3147198		Switch Membrane (control Module)		Appelez-nous	-
2	313818		Screw, 8-32 X 3/16 (6)		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
3	3147281		Bracket, Control Mounting		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	313534		Thermostat		Appelez-nous	-
6	3147233		Switch, Selector		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
7	308475		Switch, Infinite (4)		Appelez-nous	-
7	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
8	3147517		Light, Indicator (4)		Appelez-nous	-
9	314222		Knob, Control (6)		Appelez-nous	-
