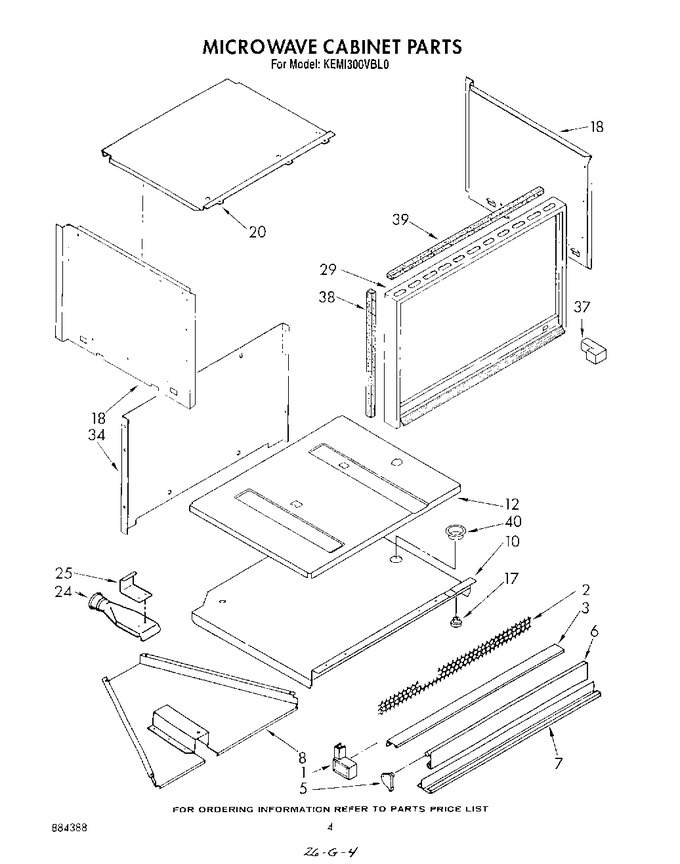

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148020		End Cap, R.h.		Appelez-nous	-
1	3148019		End Cap, L.h.		Appelez-nous	-
1	342043		Screw (2)		Appelez-nous	-
2	3147644		Trim, Oven Vent		Appelez-nous	-
3	3147642		Trim, Top		Appelez-nous	-
3	246131		Screw, 6a X 3/8		Appelez-nous	-
3	342043		Screw (2)		Appelez-nous	-
5	3148698		End Trim, Vent Door R.h.		Appelez-nous	-
5	3148697		End Trim, Vent Door L.h.		Appelez-nous	-
6	3149423		Door, Vent		Appelez-nous	-
7	314184		Trim, Bottom		Appelez-nous	-
7	302251		Screw, 8 X 1/2		Appelez-nous	-
7	342043		Screw (2)		Appelez-nous	-
8	3170178		Box Air		Appelez-nous	-
10	WP488729		Screw   (Replaces: 313638)			Immediately	$ 7.01
10	312330		Adhesive		Appelez-nous	-
10	3147494		Support Plate		Appelez-nous	-
12	3147498		Panel, Support		Appelez-nous	-
17	309552		Snap Bushing		Appelez-nous	-
18	3147492		Side Panel, R.h.		Appelez-nous	-
18	3147493		Side Panel, L.h.		Appelez-nous	-
20	3147495		Panel, Top		Appelez-nous	-
20	WP488729		Screw, 8-18 X 1/2 (8)   (Replaces: 313638)			Immediately	$ 7.01
20	302251		Screw, 8 X 1/2		Appelez-nous	-
24	312696		Vent Tube		Appelez-nous	-
25	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	312698		Support, Vent Tube		Appelez-nous	-
29	3170177		Frame		Appelez-nous	-
34	3147491		Cover, Rear		Appelez-nous	-
34	WP488729		Screw, 8-18 X 1/2 (12)   (Replaces: 313638)			Immediately	$ 7.01
37	3147750		Seal, Foam (2)		Appelez-nous	-
38	3147595		Seal, Foam (2)		Appelez-nous	-
39	3147596		Seal, Foam (2)		Appelez-nous	-
40	3147647		Bushing, Snap		Appelez-nous	-
