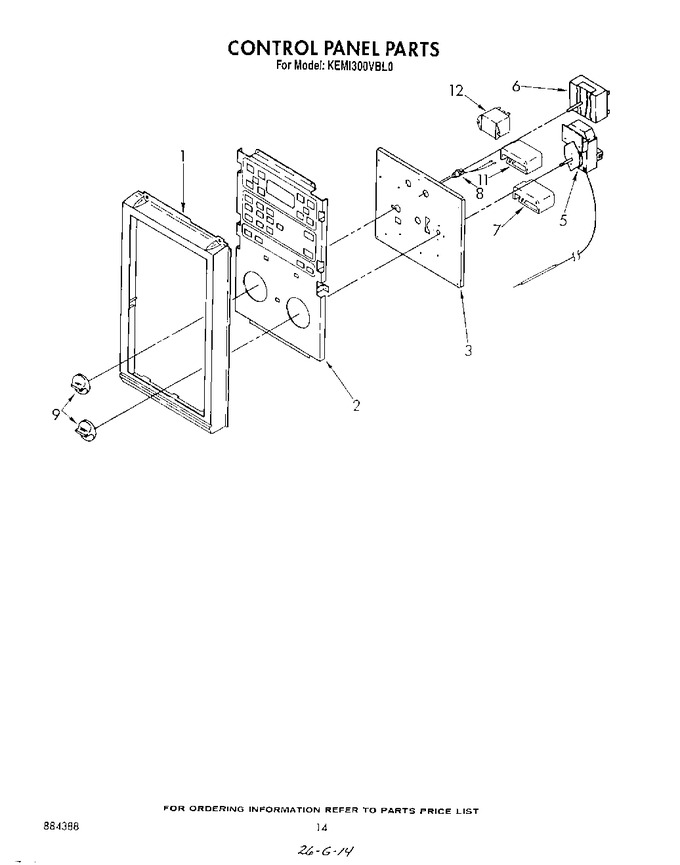

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148091		Frame, Control Panel		Appelez-nous	-
1	313818		Screw (4)		Appelez-nous	-
2	3147199		Switch Membrane (control Module)		Appelez-nous	-
2	308119		Screw, 8-32 X 3/16 (6)		Appelez-nous	-
3	308119		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
3	3147282		Bracket, Control (mounting)		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	3148932		Thermostat		Appelez-nous	-
6	312289		Switch, Selector		Appelez-nous	-
7	314215		Screw		Appelez-nous	-
7	314210		Switch, Bake		Appelez-nous	-
8	3147517		Light, Indictor (4)		Appelez-nous	-
9	3149116		Knob, Control (2)		Appelez-nous	-
11	314209		Switch, Broil		Appelez-nous	-
11	314215		Screw		Appelez-nous	-
12	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
12	3147218		Harness, Wiring (socket)		Appelez-nous	-
12	308564		Harness, Wiring (connector (10))		Appelez-nous	-
12	308565		Harness, Wiring (housing)		Appelez-nous	-
12	309405		Harness, Wiring (housing)		Appelez-nous	-
12	3147559		Harness, Wiring (touch Control)		Appelez-nous	-
12	310222		Harness, Wiring (connector (11))		Appelez-nous	-
12	314125		Relay, Power		Appelez-nous	-
12	3147916		Harness, Wiring (thermostat)		Appelez-nous	-
