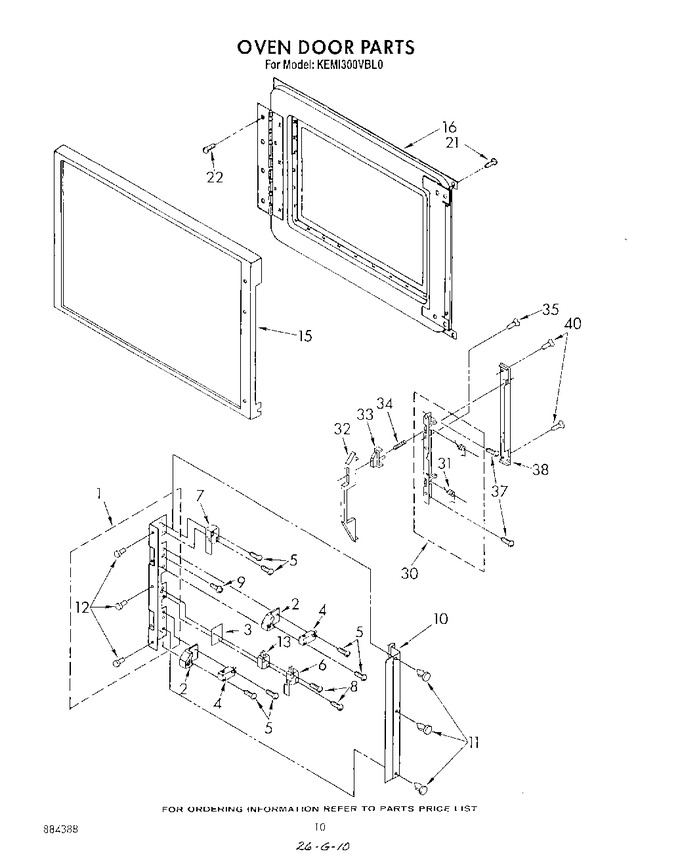

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312713		Screw, 8-32 X 3/8		Appelez-nous	-
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313126		Insulator, Switch		Appelez-nous	-
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313125)				$ 81.32
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313077)				$ 81.32
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
5	312717		Screw, 4-40 X 5/8 Pan Head Thread Form (4)		Appelez-nous	-
6	313124		Switch, Light Monitor (alt.)		Appelez-nous	-
6	313076		Switch, Light Monitor (alt.)		Appelez-nous	-
6	661145		Switch, Light/ Monitor		Appelez-nous	-
7	313120		Switch, Door		Appelez-nous	-
8	310211		Screw, 4-40 X 10 (2)		Appelez-nous	-
9	309080		Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground)		Appelez-nous	-
10	311360		Shield		Appelez-nous	-
11	313740		Fastener (2)		Appelez-nous	-
12	311928		Rivet, Pop (3)				$ 5.33
13	661144		Switch, Miniature		Appelez-nous	-
13	313075		Switch, Miniature (alt.)		Appelez-nous	-
13	313123		Switch, Miniature (alt.)		Appelez-nous	-
15	3170440		Frame, Door		Appelez-nous	-
16	3171012		Door, Inner		Appelez-nous	-
21	313823		Screw, 8-32 X 5/16 Torx Fillister Head Chrome (2)		Appelez-nous	-
22	WPW10068250		Screw, 8-32 X 19/32 Torx Truss Head (6)   (Replaces: 311777)				$ 3.66
30	329066		Latch Assembly		Appelez-nous	-
31	311352		Spring, Torsion (2)		Appelez-nous	-
32	314169		Handle, Door		Appelez-nous	-
33	313611		Button, Door Handle   (Replaces: 314168)				$ 35.65
34	310197		Spring, Compression		Appelez-nous	-
35	303776		Screw, 8-32 Fillister Head Thead Form   (Replaces: 313811)		Appelez-nous	-
37	313820		Screw, 8-32 X 7/16 Hex Washer Head Thread Form (3)		Appelez-nous	-
38	3147521		End Cap		Appelez-nous	-
40	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
40	350930		White   (Replaces: 799343)			Immediately	$ 34.39
40	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	261891		Harvest Gold		Appelez-nous	-
40	978883		Almond		Appelez-nous	-
40	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
40	285368		Platinum		Appelez-nous	-
40	261582		Grease		Appelez-nous	-
40	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
40	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
40	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
40	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
40	261881		Rotisserie Kit (rck 79)		Appelez-nous	-
40	310878		Rack, Meat (micro) (micro)		Appelez-nous	-
40	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
40	313823		Screw, 8-22 X 5/16 Thread Form Truss Head (2)		Appelez-nous	-
40	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
40	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
40	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
40	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
40	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
40	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
40	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
40	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
40	242831		Wire (14 Ga. 200 C Red)				$ 342.23
40	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
40	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
40	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
40	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
40	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
40	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
40	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
40	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
40	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
40	254323		Touch-up, Oven (self-clean)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
40	261900		Citrine White (5 Oz.)				$ 51.34
40	350942		Primer (white)   (Replaces: 206922)				$ 80.69
40	206925		Leveler, Enamel		Appelez-nous	-
40	261890		Harvest Gold		Appelez-nous	-
40	285365		Toast		Appelez-nous	-
40	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	LIT3147420		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3147419		Use & Care Guide		Appelez-nous	-
	LIT3147382		Installation Instructions		Appelez-nous	-
	LIT3147967		Tech Sheet		Appelez-nous	-
	LIT884388		List, Repair Parts		Appelez-nous	-
	LIT3147469		Book, Cooking Guide		Appelez-nous	-
	LIT3147005		Cookbook, Microwave		Appelez-nous	-
