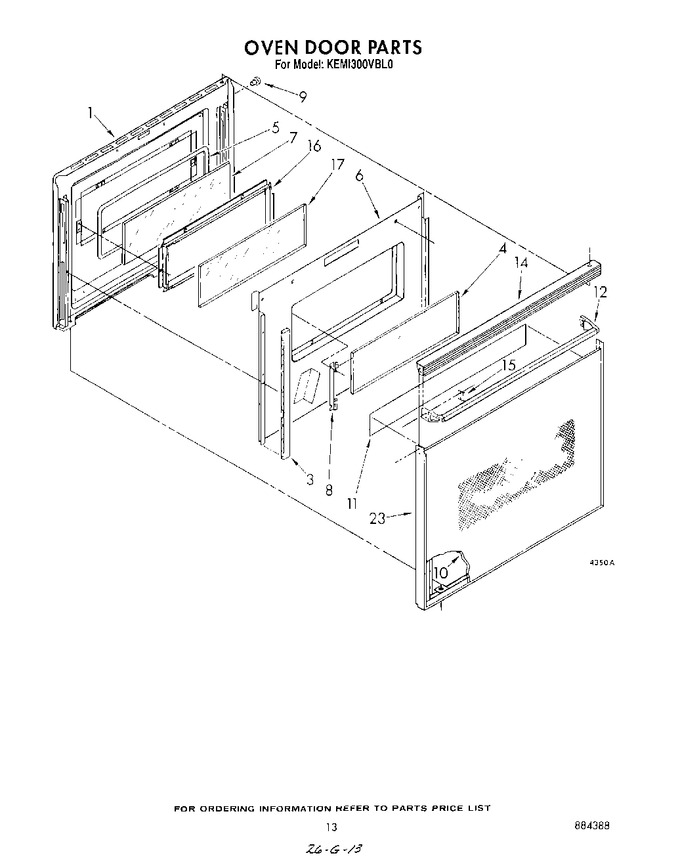

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170707		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Door				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148723		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Outside   (Replaces: 313005)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper, Door (4)		Appelez-nous	-
10	3148185		Glass, Panel		Appelez-nous	-
11	3148184		Foil, Handle		Appelez-nous	-
12	3147636		Handle, Door		Appelez-nous	-
12	3149333		Screw (3)				$ 5.33
14	307748		Screw (3)		Appelez-nous	-
14	3148223		Trim, Panel		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
17	WP3169203		Glass, Outside   (Replaces: 313005)				$ 135.71
23	3148784		Frame, Door		Appelez-nous	-
