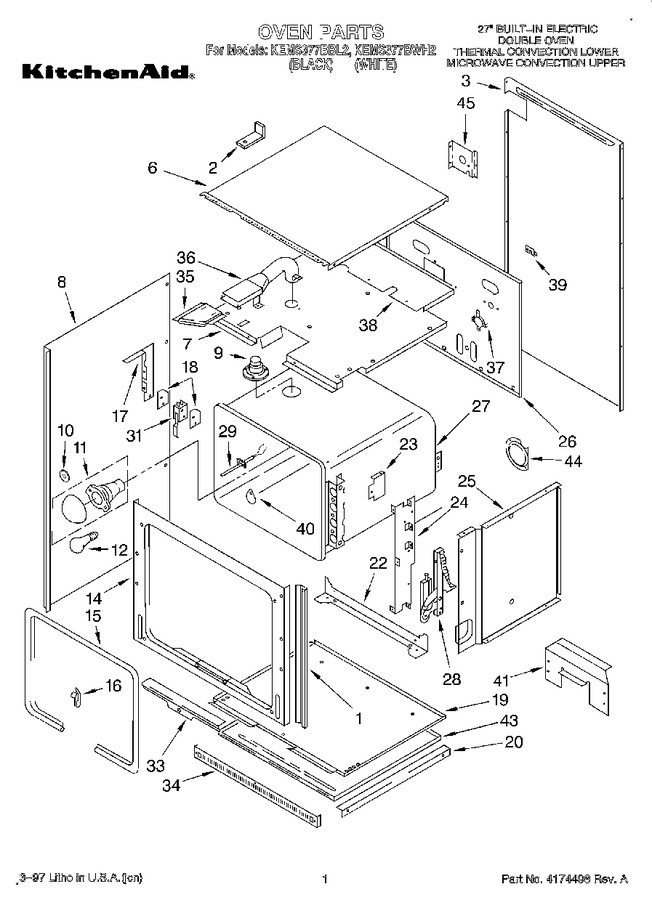

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Component Shelf And Latch


05 - Internal Oven


06 - Convection Fan


07 - Microwave Compartment


08 - Magnetron And Air Flow


09 - Cavity And Turntable


10 - Cabinet


11 - Door And Latch


12 - Microwave Control Panel


13 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187874		Side Trim, Door (black Model)		Appelez-nous	-
1	3187877		Trim, Side Door (white Model)		Appelez-nous	-
2	3187369		Brace, M/w Back		Appelez-nous	-
2	3185647		Screw		Appelez-nous	-
3	3177740		Cabinet, Back		Appelez-nous	-
3	3185647		Screw		Appelez-nous	-
6	3178143		Cabinet, Top		Appelez-nous	-
6	3185647		Screw		Appelez-nous	-
7	3183748		Module, Top		Appelez-nous	-
7	3185647		Screw		Appelez-nous	-
8	3185647		Side, Cabinet (screw)		Appelez-nous	-
8	3181696		Side, Cabinet (left Hand)		Appelez-nous	-
8	3181695		Side, Cabinet (right Hand)		Appelez-nous	-
9	3186684		Tube, Vent		Appelez-nous	-
9	3185647		Screw		Appelez-nous	-
10	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
11	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
14	3186950		Frame, Front		Appelez-nous	-
15	3179813		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177621		Bottom, Module		Appelez-nous	-
20	3185647		Screw		Appelez-nous	-
20	3179220		Rail, Support (2)		Appelez-nous	-
22	3185647		Screw		Appelez-nous	-
22	3177434		Support, Oven		Appelez-nous	-
23	3185647		Screw		Appelez-nous	-
23	3179795		Screw (6)		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
24	3177433		Bracket, Hinge		Appelez-nous	-
24	3179795		Screw (6)		Appelez-nous	-
24	3185647		Screw		Appelez-nous	-
25	3185647		Screw		Appelez-nous	-
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
26	3177561		Back, Module		Appelez-nous	-
26	3185647		Screw		Appelez-nous	-
27	3185563		Liner, Oven		Appelez-nous	-
28	3179795		Screw (4)		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
29	3148440		Sensor, Heat		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
31	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.47
33	4168863		Screw		Appelez-nous	-
33	486210		Screw (4)		Appelez-nous	-
33	3179587		Retainer, Seal		Appelez-nous	-
34	3177783		Vent, Lower Trim (black Model)		Appelez-nous	-
34	3187957		Trim, Lower Vent (white Model)		Appelez-nous	-
34	3180022		Vent, Lower Trim (screw (4))		Appelez-nous	-
35	3181964		Vent, Tube (upper, Female) (white Model)		Appelez-nous	-
35	3187388		Vent, Tube (upper, Female) (black Model)		Appelez-nous	-
36	3179945		Vent, Tube (upper, Male)		Appelez-nous	-
37	3185647		Screw		Appelez-nous	-
37	3149652		Spst Thermostat		Appelez-nous	-
38	3180332		Extension, Shelf		Appelez-nous	-
38	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 6.47
39	4168203		Cover, Cap Tube		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-
40	3185085		Plate, Cover		Appelez-nous	-
40	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
41	3183752		Bracket, Control		Appelez-nous	-
43	3177551		Bottom, Oven		Appelez-nous	-
44	WP3177991		Screw (4)   (Replaces: 3177991)			Immediately	$ 6.47
44	4163883		Plate, Cover		Appelez-nous	-
45	4454418		Insulation, Wrap		Appelez-nous	-
45	3177545		Bracket, Conduit		Appelez-nous	-
45	3177872		Insulation, Back		Appelez-nous	-
