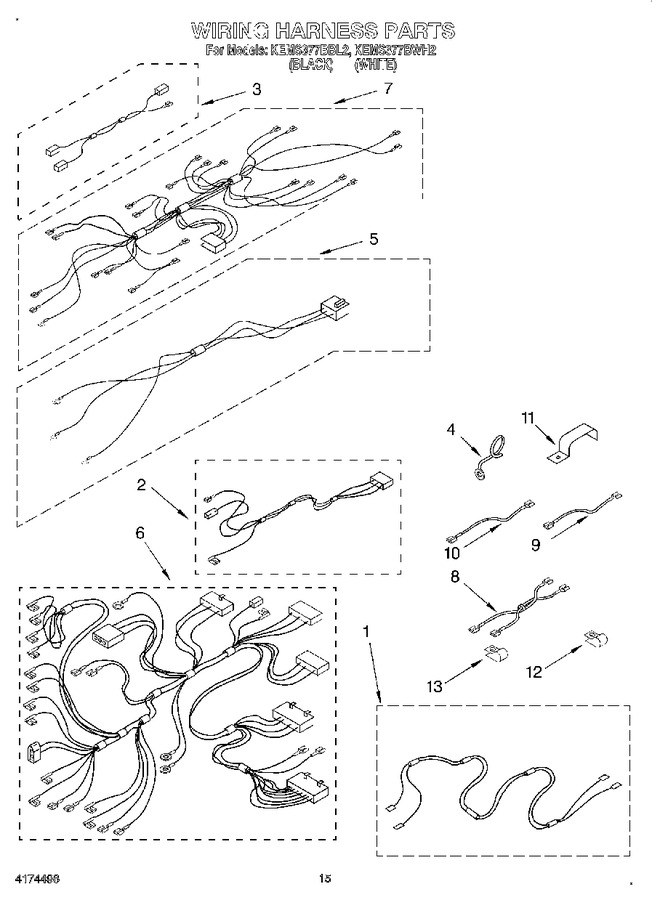

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185130		Harness, Wiring (light Switch)		Appelez-nous	-
2	3184819		Harness, Wiring (latch-combo)		Appelez-nous	-
3	3184822		Harness, Wiring (combo-probe)		Appelez-nous	-
4	3179668		Harness, Wiring (standoff)		Appelez-nous	-
5	3181721		Harness, Wiring (microwave Power)		Appelez-nous	-
6	3184750		Harness, Wire (main Power)		Appelez-nous	-
7	4313068		Harness, Wiring (microwave Main)		Appelez-nous	-
8	4365506		Harness, Wiring Thermal Protection		Appelez-nous	-
9	4313679		H.v. Wire		Appelez-nous	-
10	4365546		Sensor Ground Wire		Appelez-nous	-
11	7111P002-60		Clamp, Electrical   (Replaces: 4159037)		Appelez-nous	-
12	WP308605		Clamp, Wire   (Replaces: 3179669)				$ 10.08
13	4319148		Trim, Gray		Appelez-nous	-
13	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
13	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
13	4319146		Trim, White		Appelez-nous	-
13	4319147		Trim, Almond		Appelez-nous	-
13	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
13	16515		Clip   (Replaces: 313438)				$ 17.60
13	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
13	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
13	261900		Citrine White				$ 51.34
13	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
13	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
13	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
13	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
13	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
13	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
13	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
13	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
13	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
13	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
13	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
13	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
13	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
13	242831		Wire (14 Ga. 200 C Red)				$ 342.23
13	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
