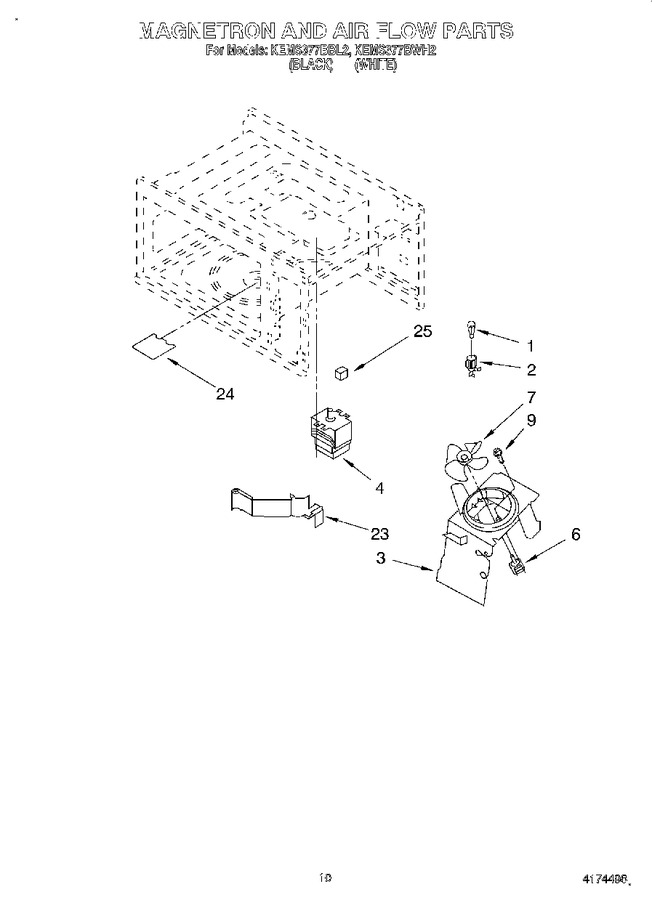

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPA3073101 | Lamp, Oven (Replaces: 4174873) |
|
Immediately | $ 10.90 | ||||
| 2 | 4313607 | Socket, Lamp |
|
- | |||||
| 3 | 4313686 | Duct, Fan |
|
- | |||||
| 4 | 4365500 | Screw |
|
- | |||||
| 4 | 4365544 | Magnetron |
|
- | |||||
| 6 | 4313672 | Motor, Fan |
|
- | |||||
| 7 | 4174669 | Blade, Fan |
|
- | |||||
| 9 | 4313701 | Screw |
|
- | |||||
| 23 | 4365553 | Duct, Magnetron |
|
- | |||||
| 24 | 4313687 | Cover, Wave Guide |
|
- | |||||
| 25 | 4313643 | Shield, Magnetron |
|
- |
