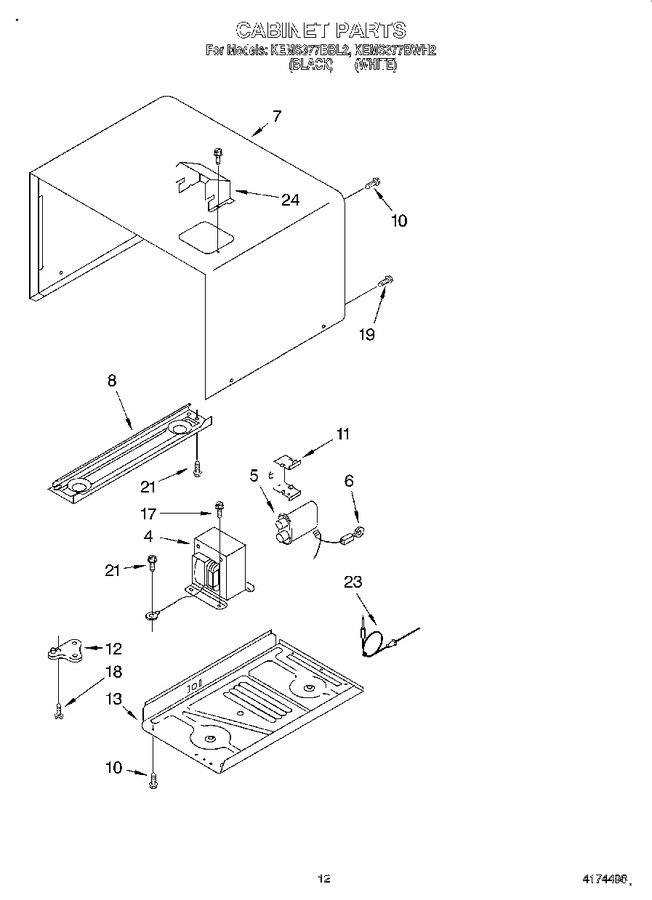

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 4365545 | Transformer |
|
- | |||||
| 5 | 4313605 | Capacitor |
|
- | |||||
| 6 | 4365530 | Screw |
|
- | |||||
| 6 | 4313671 | Rectifier |
|
- | |||||
| 7 | 4365554 | Outer Cabinet (black Model) |
|
- | |||||
| 7 | 4365555 | Outer Cabinet (white Model) |
|
- | |||||
| 8 | 4365552 | Base Plate, Left Side |
|
- | |||||
| 10 | 4357320 | Screw |
|
- | |||||
| 11 | 4313663 | Screw |
|
- | |||||
| 11 | 4174811 | Screw |
|
- | |||||
| 11 | 4313681 | Bracket, Capacitor |
|
- | |||||
| 12 | 4313619 | Hinge, Lower |
|
- | |||||
| 13 | 4365551 | Base Plate, Right Side |
|
- | |||||
| 17 | 4365500 | Screw |
|
- | |||||
| 18 | 4313664 | Screw |
|
- | |||||
| 19 | 4313665 | Screw |
|
- | |||||
| 21 | 4164610 | Screw |
|
- | |||||
| 23 | 4365550 | Probe, Temperature |
|
- | |||||
| 24 | 4365558 | Duct, Exhaust (front) |
|
- |
