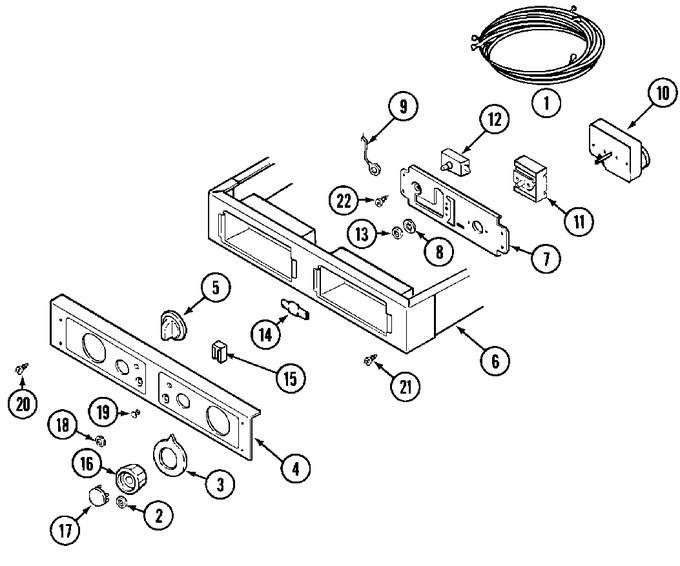

01 - Control Panel & Support Assy.


02 - Front


03 - Top Cover (mde11mnadw)


04 - Door


05 - Rear


06 - Tumbler


07 - Heater


08 - Motor Drive


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	308301		Wire Harness, Main (upr)	A0	Appelez-nous	-
001	314522		Grommet, Strain Relief	A0	Appelez-nous	-
001	33001556		Wire Harness, Main (lwr)	16	Appelez-nous	-
001	NLA		(lwr)	A0	Appelez-nous	-
002	W10155650		Nut, Timer Knob   (Replaces: 312273)	A0			$ 12.03
003	314725		Dial, Timer Indicator	A0	Appelez-nous	-
003	33001500		Dial, Timer Indicator	12	Appelez-nous	-
004	NLA		Panel, Control	A0	Appelez-nous	-
005	205663		Knob, Cycle Selector	A0	Appelez-nous	-
006	NLA		Support Assembly (wht)	A0	Appelez-nous	-
006	Y310632		Screw, Support Assembly	A0	Appelez-nous	-
007	NLA		Bracket, Control Mounting	A0	Appelez-nous	-
008	WPW10139799		Lockwasher, Start Switch   (Replaces: 312751)	A0			$ 8.32
009	205810		Ground Wire	A0	Appelez-nous	-
009	WPW10139210		Screw, Ground Wire   (Replaces: 211168)	A0			$ 6.75
009	WP489399		Screw, Ground Wire   (Replaces: 211252)	A0			$ 6.26
010	Y307296		Timer Rpr	A0			$ 148.86
011	WPW10149462		Switch, Push   (Replaces: 306940)	A0			$ 60.77
012	307253		Switch, Cycle Selector	A0	Appelez-nous	-
013	Y312706		Nut, Start Switch	A0	Appelez-nous	-
014	Y201110		Connector, Wire	A0	Appelez-nous	-
015	204075		Light, Indicator	A0	Appelez-nous	-
016	W11232017		Knob, Timer   (Replaces: 314724)	A0			$ 11.13
017	WPW10133501		Cap, Timer Knob   (Replaces: 314723)	A0			$ 54.76
018	Y312702		Knurled Nut, Start Switch	A0			$ 18.18
019	WP215564		Lens, Indicator Light   (Replaces: 215564)	A0		Immediately	$ 7.14
020	WPW10131119		Screw, Control Panel   (Replaces: 215506)	A0			$ 6.26
021	910186		Screw, Mounting Bracket	A0	Appelez-nous	-
022	WP488234		Screw, Timer & Cycle Selector   (Replaces: Y313588)	A0			$ 6.07
