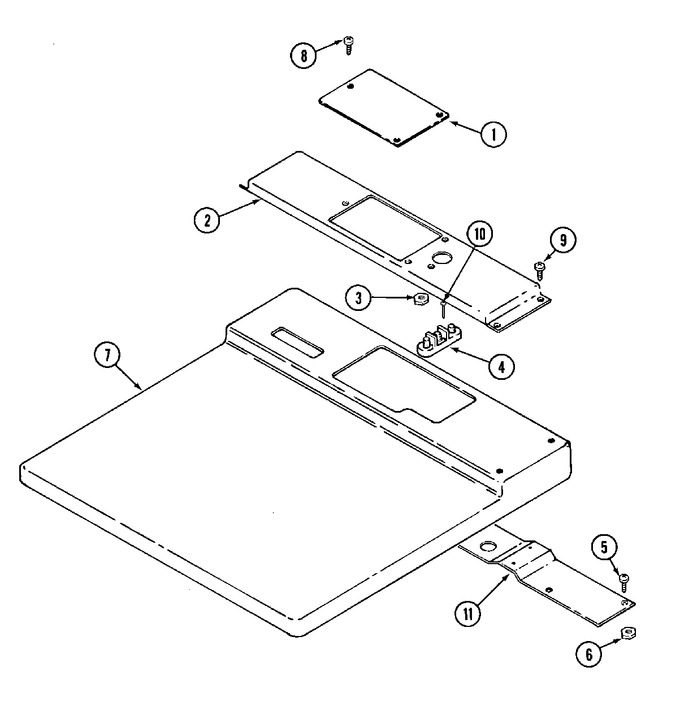

03 - Top Cover (mde11mnadw)


04 - Door


05 - Rear


06 - Tumbler


07 - Heater


08 - Motor Drive


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y314174		Cover, Terminal	A0	Appelez-nous	-
002	NLA		Entrance, Conduit	A0	Appelez-nous	-
003	WP112432		Nut, Terminal Block   (Replaces: 311484)	A0			$ 7.16
003	Y311270		Washer, Terminal Block	A0			$ 8.75
004	400008		Block, Terminal	A0			$ 29.20
005	WPW10133264		Lockwasher, Plate Screw   (Replaces: 22001354)	A0			$ 125.12
005	NLA		Screw, Terminal Block Plate	A0	Appelez-nous	-
006	Y052721		Nut, Terminal Block Plate	A0			$ 21.38
007	33001161		Top Cover Assembly (wht)	A0	Appelez-nous	-
008	WP90767		Screw, Terminal Cover   (Replaces: 211294)	A0		Immediately	$ 7.04
008	WP90767		Screw, Terminal Cover   (Replaces: Y313559)	A0		Immediately	$ 7.04
009	WP90767		Screw, Conduit Entrance   (Replaces: 211294)	A0		Immediately	$ 7.04
009	WP90767		Screw, Conduit Entrance   (Replaces: Y313559)	A0		Immediately	$ 7.04
010	W11164114		Screw, Terminal Block   (Replaces: Y312209)	A0			$ 3.76
011	33001303		Grommet, Plate Hole	A0	Appelez-nous	-
011	33001316		Plate, Terminal Block	A0	Appelez-nous	-
