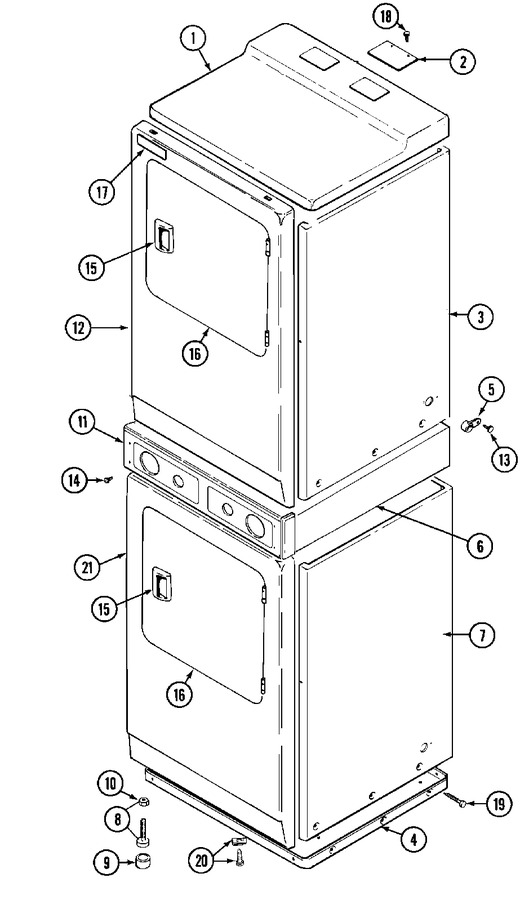

03 - Top Cover (mde11mnadw)


04 - Door


05 - Rear


06 - Tumbler


07 - Heater


08 - Motor Drive


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001161		Top Cover Assembly (wht)	A0	Appelez-nous	-
001	33001165		(wht)	A0	Appelez-nous	-
002	NLA		Plate, Cover	A0	Appelez-nous	-
003	NLA		Cabinet (upr-wht)	A0	Appelez-nous	-
004	306530		Base Assembly (lwr)	A0	Appelez-nous	-
004	Y307482		(upr)	A0	Appelez-nous	-
005	910768		Stop, Cable	A0	Appelez-nous	-
006	314663		Screw, Support	A0	Appelez-nous	-
006	Y310632		Screw, Support	A0	Appelez-nous	-
006	WP4312464		Screw, Support   (Replaces: 911050)	A0			$ 6.26
006	NLA		Support Assembly (wht)	A0	Appelez-nous	-
007	NLA		Cabinet (lwr-wht)	A0	Appelez-nous	-
008	22003428		Leg, Adjustable (w/nut)   (Replaces: Y302699)	A0		Immediately	$ 14.41
009	WP210684		Foot, Rubber   (Replaces: 210684)	A0		Immediately	$ 14.09
010	WP210385		Nut, Lock   (Replaces: 210385)	A0			$ 6.26
011	NLA		Panel, Control	A0	Appelez-nous	-
012	NLA		Panel, Front (upr-wht)	A0	Appelez-nous	-
013	WPW10139210		Screw, Cable Stop   (Replaces: 211168)	A0			$ 6.75
014	WPW10131119		Screw, Control Panel   (Replaces: 215506)	A0			$ 6.26
015	33001241		Handle, Door (wht)	A0			$ 49.02
016	33001240		Door (wht)	A0			$ 80.53
017	NLA		Name Plate	A0	Appelez-nous	-
018	WP90767		Screw, Cover Plate   (Replaces: Y313559)	A0		Immediately	$ 7.04
019	213007		Screw, Cabinet Sides	A0			$ 10.99
020	204439		Screw & Clip Assembly	A0			$ 8.80
021	NLA		Panel, Front (lwr-wht)	A0	Appelez-nous	-
