SELECT A DIAGRAM

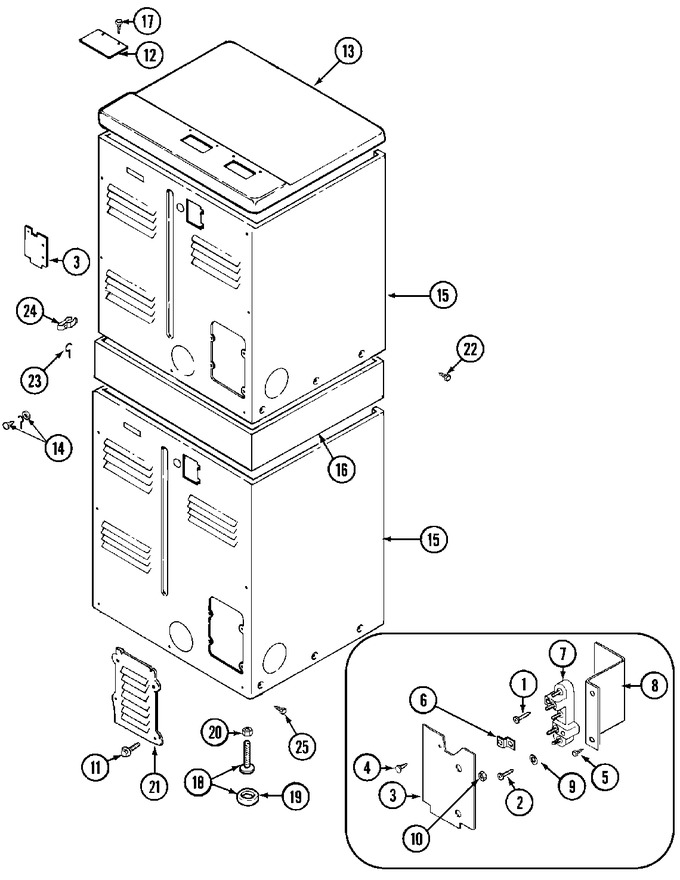

01 - Control Panel & Support Assy.


02 - Front


03 - Top Cover (mde11mnadw)


04 - Door


05 - Rear


06 - Tumbler


07 - Heater


08 - Motor Drive


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Screw, Ground Strap	A0	Appelez-nous	-
002	Y310632		Screw, Terminal Block	A0	Appelez-nous	-
003	Y312905		Cover, Terminal	A0	Appelez-nous	-
004	Y313561		Screw, Terminal Cover	A0			$ 5.27
005	W11164114		Screw, Terminal Bracket   (Replaces: Y312209)	A0			$ 3.76
006	Y312184		Strap, Ground	A0	Appelez-nous	-
007	400008		Block, Terminal	A0			$ 29.20
008	Y312904		Bracket, Terminal	A0	Appelez-nous	-
009	WP311093		Washer, Brass   (Replaces: 311093)	A0			$ 7.25
009	Y311270		Washer, Terminal Block	A0			$ 8.75
010	WP112432		Nut, Terminal Block   (Replaces: 311484)	A0			$ 7.16
011	WP90767		Screw, Access Cover   (Replaces: 211294)	A0		Immediately	$ 7.04
011	WP90767		Screw, Access Cover   (Replaces: Y313559)	A0		Immediately	$ 7.04
012	NLA		Plate, Top Cover	A0	Appelez-nous	-
013	33001161		Top Cover Assembly (wht)	A0	Appelez-nous	-
013	33001165		Top Cover Assembly (wht)	A0	Appelez-nous	-
014	NLA		Screw & Washer Assembly	A0	Appelez-nous	-
015	NLA		Cabinet (wht)	A0	Appelez-nous	-
015	Y310632		Screw, Cabinet	A0	Appelez-nous	-
016	NLA		Support Assembly (wht)	A0	Appelez-nous	-
017	WP90767		Screw, Top Cover Plate   (Replaces: Y313559)	A0		Immediately	$ 7.04
018	22003428		Leg, Adjustable (w/nut)   (Replaces: Y302699)	A0		Immediately	$ 14.41
019	WP210684		Foot, Rubber   (Replaces: 210684)	A0		Immediately	$ 14.09
020	WP210385		Nut, Lock   (Replaces: 210385)	A0			$ 6.26
021	Y312951		Cover, Access	A0	Appelez-nous	-
022	NLA		Screw, Support	A0	Appelez-nous	-
022	Y310632		Screw, Support	A0	Appelez-nous	-
023	311155		Ground Wire	A0			$ 8.77
024	301548		Clamp, Ground (w/screw)	A0	Appelez-nous	-
024	313122		Screw, Clamp	A0	Appelez-nous	-
025	213007		Screw, Cabinet Side	A0			$ 10.99

    View Diagram in Separate Window       Print Part List
