01 - Control Panel
02 - Control Center
03 - Cabinet-front
04 - Door
05 - Cabinet-rear
06 - Tumbler
07 - Heater
08 - Motor Drive
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

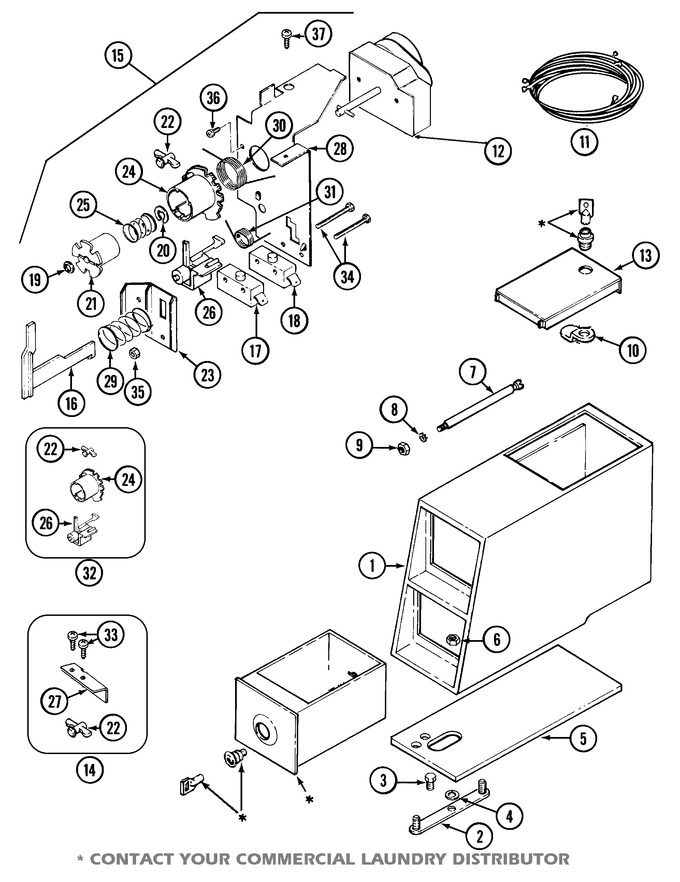

| 001 | WP22002478 | Vault, Coin (wht)cs (Replaces: 22002478) | 10 |
|
$ 266.69 | ||||
| 002 | 22001810 | Strap, Mounting | 10 |
|
- | ||||
| 003 | WP90767 | Screw, Mounting Strap (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 004 | 910309 | Washer, Strap Screw | 10 |
|
- | ||||
| 005 | 22002072 | Gasket, Control Center (wht) | 10 |
|
- | ||||
| 006 | WP62739 | Nut, Case Mounting (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 007 | WP8576635 | Bolt, Locking (Replaces: 22001903) | 10 |
|
Immediately | $ 67.13 | |||
| 008 | 910387 | Lockwasher, Locking Bolt | 10 |
|
- | ||||
| 009 | Y052721 | Nut, Locking Bolt | 10 |
|
$ 21.38 | ||||
| 010 | 22003677 | Locking Cam | 10 |
|
$ 5.71 | ||||
| 011 | 33001195 | Wire Harness, Timer | 10 |
|
- | ||||
| 012 | WP33002115 | Timer (Replaces: 33002115) | 10 |
|
Immediately | $ 339.90 | |||
| 012 | 33002136 | Timer (240-50) | 10 |
|
- | ||||
| 013 | 22001881 | Grommet, Double | 10 |
|
- | ||||
| 013 | 22001882 | Latch, Access Door | 10 |
|
- | ||||
| 013 | 22001883 | Screw | 10 |
|
- | ||||
| 013 | 33002772 | Door, Access(wht) | 10 |
|
- | ||||
| 014 | 33002598 | Actuator, Dryer Kit | 10 |
|
- | ||||
| 015 | 33001275 | Torsion Timer Assy. | 10 |
|
$ 197.61 | ||||
| 015 | 33001276 | Torsion Timer Assy. (240-50hz) | 10 |
|
- | ||||
| 016 | 33002968 | Slider (Replaces: 314337) | 10 |
|
$ 41.03 | ||||
| 017 | 305798 | Switch, By-pass (motor) | 10 |
|
- | ||||
| 018 | Y305799 | Switch, By-pass (heater) | 10 |
|
$ 29.88 | ||||
| 019 | 211790 | Retainer, Spring | 10 |
|
$ 6.54 | ||||
| 020 | Y312270 | Clip, Spring Retainer | 10 |
|
- | ||||
| 021 | 314330 | Driver, Index Wheel | 10 |
|
$ 2.15 | ||||
| 022 | 314335 | Peg, Tine Adjustment | 10 |
|
$ 5.22 | ||||
| 022 | Y308109 | Stop, Adjustable Return (Replaces: 314547) | 10 |
|
$ 53.59 | ||||
| 023 | 314339 | Bracket, Switch & Slider | 10 |
|
- | ||||
| 024 | 314546 | Wheel, Index | 10 |
|
$ 31.97 | ||||
| 025 | 211065 | Spring, Index Wheel | 10 |
|
$ 5.70 | ||||
| 026 | 314548 | Actuator, Switch | 10 |
|
- | ||||
| 026 | 33002967 | Actuator, Switch | 11 |
|
$ 22.52 | ||||
| 027 | 33001708 | Bracket, Coin Slide | 10 |
|
- | ||||
| 028 | 33002702 | Timer Bracket | 10 |
|
- | ||||
| 029 | NLA | Spring, Helical | 10 |
|
- | ||||
| 030 | 314331 | Spring, Torsion Return | 10 |
|
$ 36.13 | ||||
| 031 | 314332 | Spring, Actuator | 10 |
|
- | ||||
| 032 | 306104 | Actuator Kit | 10 |
|
- | ||||
| 033 | W11684507 | Screw, Slide Bracket (Replaces: 212707) | 10 |
|
$ 12.23 | ||||
| 034 | 315277 | Screw, By-pass Switches | 10 |
|
- | ||||
| 035 | M0282005 | Nut, By-pass Switches (Replaces: Y052634) | 10 |
|
$ 7.07 | ||||
| 036 | WP488234 | Screw, Timer (Replaces: 910708) | 10 |
|
$ 6.07 | ||||
| 037 | WPW10139210 | Screw, Timer Bracket (Replaces: 211168) | 10 |
|
$ 6.75 |
