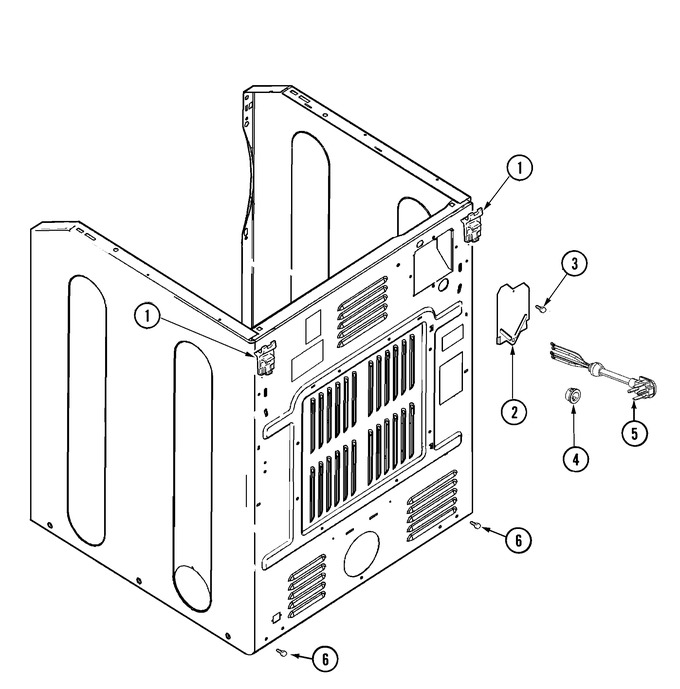

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
001	22004095		Hinge, Plastic	10			$ 20.04
002	33001795		Cover, Terminal Block	10	Appelez-nous	-
003	33002190		Screw, Terminal Block Cover	10	Appelez-nous	-
003	Y912873		Screw, Terminal Block Ground	10	Appelez-nous	-
004	33002157		Grommet	10	Appelez-nous	-
005	22004502		Clamp, Power Cord	18	Appelez-nous	-
005	33002916		Power Cord, Canadian 240v	10	Appelez-nous	-
005	33001425		Locknut, Eared For Canadian	10	Appelez-nous	-
005	33002258		Clamp, Power Cord	10	Appelez-nous	-
005	33002260		Nut, Power Cord Clamp	10	Appelez-nous	-
006	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
