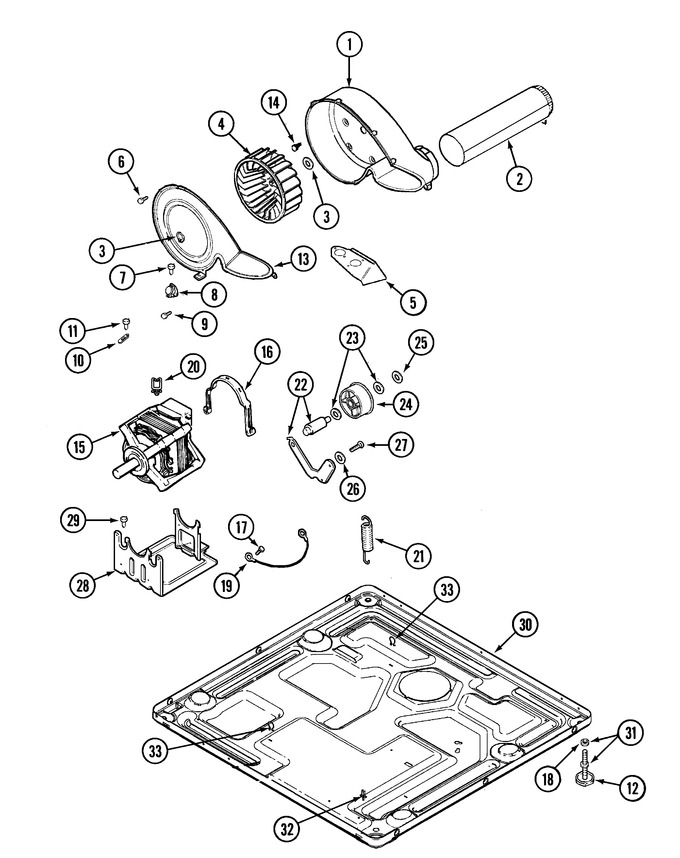

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP33001789 | Housing, Blower (Replaces: 33001789) | 10 |
|
$ 128.00 | ||||
| 002 | W11573574 | Screw, Exhaust Duct Assembly (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 002 | 33001800 | Duct Assy., Exhaust | 10 |
|
- | ||||
| 003 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 3.81 | |||
| 004 | WP33002797 | Wheel, Blower (Replaces: 33002797) | 10 |
|
Immediately | $ 93.13 | |||
| 005 | 33001837 | Cover, Thermostat (elec Only) | 10 |
|
- | ||||
| 006 | WP33002917 | Screw, Housing Cover (Replaces: 33001855) | 10 |
|
Immediately | $ 6.90 | |||
| 007 | Y313561 | Screw, Housing To Base | 10 |
|
$ 5.27 | ||||
| 008 | WP694674 | Cycling Thermostat 140 Deg. (Replaces: 303392) | 10 |
|
Immediately | $ 45.46 | |||
| 008 | 33001306 | Wire Harness, Thermostat | 10 |
|
- | ||||
| 008 | 306967 | Thermostat, Multi-temp | 10 |
|
$ 56.76 | ||||
| 009 | WP489128 | Screw, Thermostat (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 010 | WP33001762 | Fuse, Thermal (w` Bracket) (Replaces: 33001762) | 10 |
|
Immediately | $ 49.84 | |||
| 011 | NLA | Screw, Thermal Cut-off | 10 |
|
- | ||||
| 012 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 013 | 33002711 | Cover, Blower Housing | 10 |
|
- | ||||
| 014 | 314818 | Screw, Blower Housing | 10 |
|
- | ||||
| 015 | WP33002795 | Motor, Drive 60hz (Replaces: 33002795) | 10 |
|
Immediately | $ 229.65 | |||
| 015 | W10197708 | Motor, Drive 50hz (Replaces: 33002796) | 10 |
|
Immediately | $ 403.97 | |||
| 016 | WPY015825 | Clip, Motor (Replaces: 33002221) | 10 |
|
$ 21.03 | ||||
| 017 | WP488234 | Screw, Ground Wire (Replaces: 910343) | 10 |
|
$ 6.07 | ||||
| 018 | WP62739 | Nut, Leg (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 019 | 901220 | Wire, Ground | 10 |
|
- | ||||
| 020 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 021 | 33002459 | Spring, Idler Spring & Plug Kit 33002459 (Replaces: 33002460) | 10 |
|
$ 6.94 | ||||
| 021 | 33002461 | Plug For Spring | 10 |
|
- | ||||
| 022 | WP6-3705180 | Idler Arm & Shaft Assy. (Replaces: 33001840) | 10 |
|
Immediately | $ 44.32 | |||
| 023 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 10 |
|
Immediately | $ 10.01 | |||
| 024 | WP6-3700340 | Bearing, Idler Assembly (Replaces: 33001783) | 10 |
|
Immediately | $ 24.98 | |||
| 025 | WP354987 | Retaining Ring, Idler Shaft (Replaces: 312958) | 10 |
|
Immediately | $ 10.58 | |||
| 026 | 33002218 | Grommet, Idler Arm | 10 |
|
- | ||||
| 027 | WPY014874 | Screw, Idler Arm & Sleeve (Replaces: Y014874) | 10 |
|
$ 6.98 | ||||
| 028 | 33002817 | Motor Support, Offset | 10 |
|
- | ||||
| 029 | Y313561 | Screw, Motor & Blower | 10 |
|
$ 5.27 | ||||
| 030 | NLA | Base, (lwr)----na | 10 |
|
- | ||||
| 031 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 10 |
|
$ 7.16 | ||||
| 032 | 315471 | Retainer, Wire | 10 |
|
- | ||||
| 033 | 410490 | Spring, Wire Harness | 10 |
|
- |
