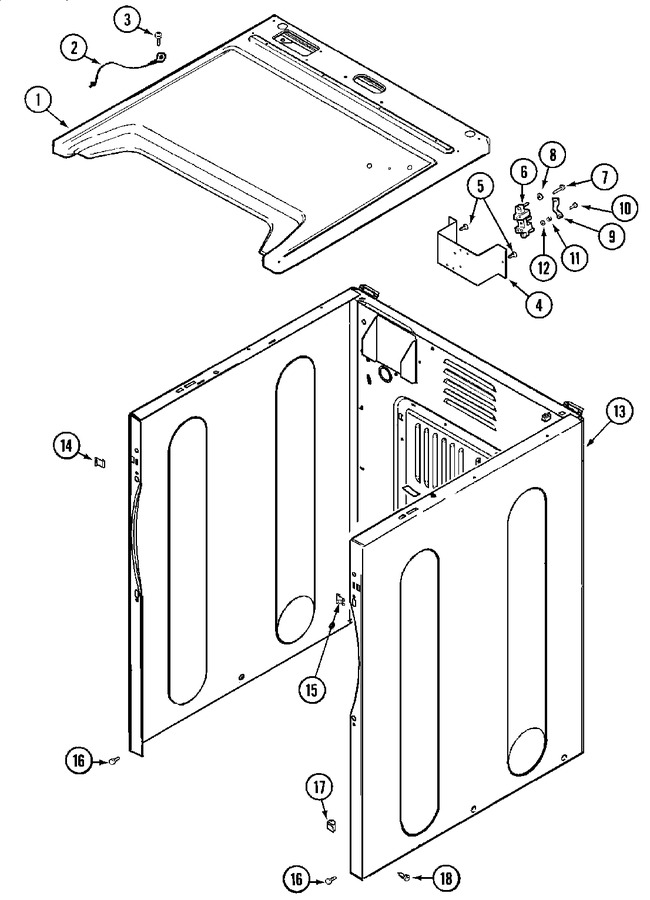

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33002633		Cover, Top (wht-as Pk)	10	Appelez-nous	-
002	22001959		Wire, Ground	10	Appelez-nous	-
003	WP489128		Screw, Ground Wire   (Replaces: 210186)	10			$ 9.79
004	NLA		Bracket, Terminal Block----na	10	Appelez-nous	-
005	W11573574		Screw, Terminal Block Bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
006	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
006	33002106		Shield, Terminal Block	10	Appelez-nous	-
006	W11705611		Block, Terminal (export)   (Replaces: 33002259)	10			$ 87.34
007	W11164114		Screw, Terminal Block   (Replaces: Y312209)	10			$ 3.76
008	Y311270		Washer, Terminal Block	10			$ 8.75
009	Y312184		Strap, Ground	10	Appelez-nous	-
010	NLA		Screw, Ground Strap	10	Appelez-nous	-
011	WP112432		Nut, Terminal Block   (Replaces: 311484)	10			$ 7.16
012	WP311093		Washer, Terminal Block   (Replaces: 311093)	10			$ 7.25
013	NLA		Cabinet Assy (wht-as Pk)	10	Appelez-nous	-
014	22002049		Clip	10			$ 8.40
015	213280		Retainer, Shroud	10	Appelez-nous	-
016	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
017	Y310376		Clip, Wire Harness	10	Appelez-nous	-
018	213007		Screw, Cabinet	10			$ 10.99
