SELECT A DIAGRAM

Diagram for 01 - Cabinet-front
01 - Cabinet-front

Diagram for 02 - Cabinet-rear
02 - Cabinet-rear

Diagram for 03 - Control Center
03 - Control Center

Diagram for 04 - Control Panel
04 - Control Panel

Diagram for 05 - Door
05 - Door

Diagram for 06 - Gas Valve
06 - Gas Valve

Diagram for 07 - Motor Drive
07 - Motor Drive

No Diagram Image Available
08 - Supplemental Information

Diagram for 09 - Tumbler
09 - Tumbler

Diagram for 10 - Wiring Information
10 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 33002642 Cabinet Assy (wht-as Pk) 10 Appelez-nous -
2 33001827 Bracket, Cabinet Hinge 10 Appelez-nous -
2 22003367 Hinge, Plastic 10 Appelez-nous -
2 W11573574 Screw   (Replaces: 22001995) 10 In-Stock Immediately $ 12.62

3 33001795 Cover, Terminal Block 10 Appelez-nous -
4 W11573574 Screw   (Replaces: 22001995) 10 In-Stock Immediately $ 12.62

4 Y912873 Screw, Latch 10 Appelez-nous -
5 216183 Grommet, Cord Export 10 Appelez-nous -
6 22003705 Adapter, Cord Export 10 Appelez-nous -
6 22003540 Cord, Power (export) 10 Appelez-nous -
7 W11573574 Screw   (Replaces: 22001995) 10 In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

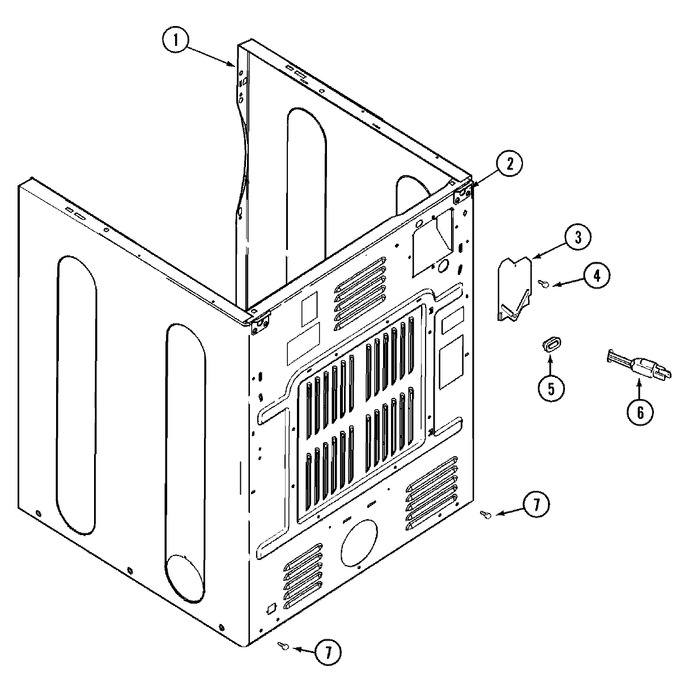

Diagram for MDG16CSBGW
