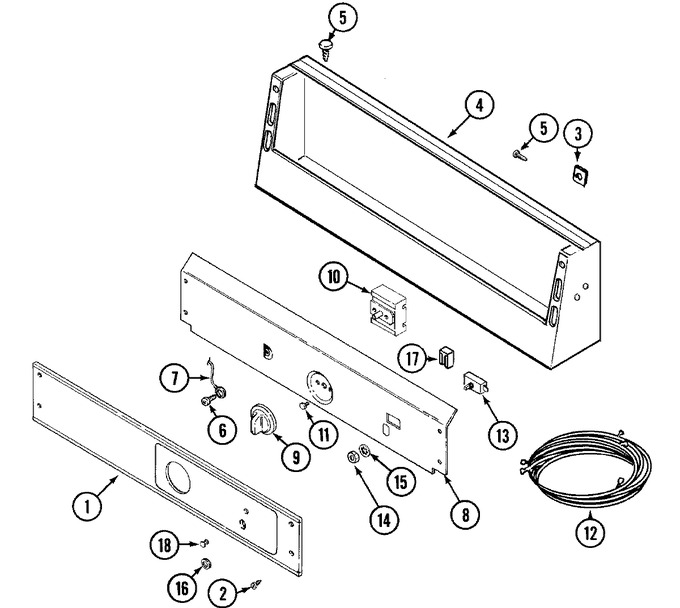

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33001958 | Panel, Control | 10 |
|
- | ||||
| 2 | WPW10131119 | Screw, Torx (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 3 | 215003 | Fastener | 10 |
|
- | ||||
| 4 | 22003089 | Console (wht) | 10 |
|
- | ||||
| 5 | WP90767 | Screw----na (Replaces: 22001069) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | WP489399 | Screw (Replaces: 211252) | 10 |
|
$ 6.26 | ||||
| 7 | 205810 | Wire, Ground | 10 |
|
- | ||||
| 8 | 33002522 | Bracket, Back (wht) | 10 |
|
- | ||||
| 9 | 306938 | Knob, Selector Switch | 10 |
|
- | ||||
| 10 | 33002276 | Switch, Cycle Selector | 10 |
|
- | ||||
| 11 | WP488234 | Screw (Replaces: Y313588) | 10 |
|
$ 6.07 | ||||
| 12 | 33002771 | Harness, Wire Main | 10 |
|
- | ||||
| 13 | WPW10149462 | Switch, Push-to-start (Replaces: 306940) | 10 |
|
$ 60.77 | ||||
| 14 | Y312706 | Hex Nut On Switch | 10 |
|
- | ||||
| 15 | WPW10139799 | Lock Washer (Replaces: 312751) | 10 |
|
$ 8.32 | ||||
| 16 | Y312702 | Knurled Nut | 10 |
|
$ 18.18 | ||||
| 17 | W10139459 | Light, Indicator (Replaces: 22001365) | 10 |
|
- | ||||
| 18 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | 10 |
|
Immediately | $ 7.14 | |||
| 19 | 16009021 | Manual, Service-no Refund | 10 |
|
- |
