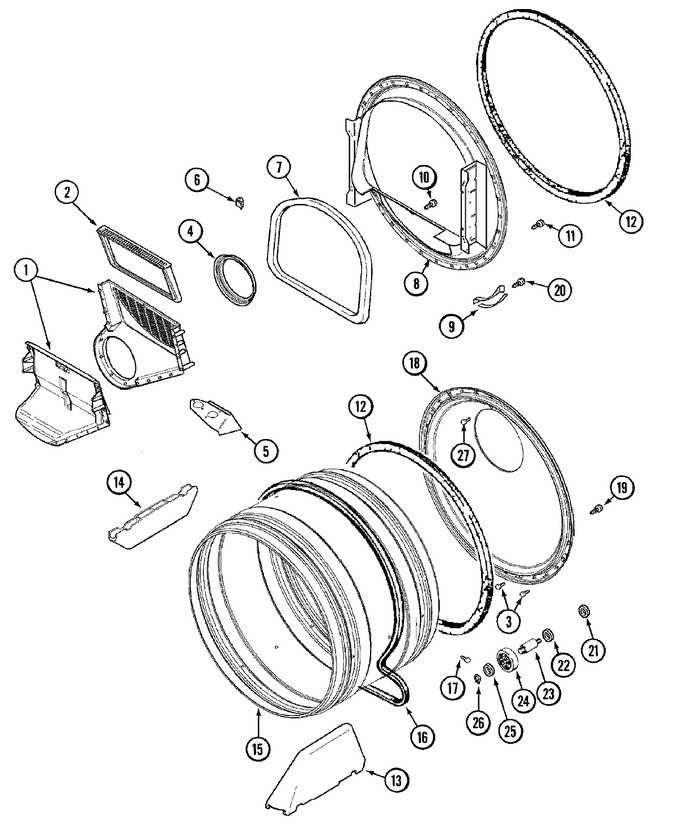

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33001799		Outlet Duct Assembly	10			$ 81.40
2	WP33002790		Filter, Lint   (Replaces: 33001804)	10		Immediately	$ 63.23
3	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79
4	33002560		Seal, Blower	10	Appelez-nous	-
5	33001837		Cover, Thermostat (elec Only)	10	Appelez-nous	-
6	22003298		Retainer, Wire	10			$ 7.71
7	33001767		Seal, Shroud	10			$ 25.05
8	33001802		Front, Tumbler (w/seal)	10			$ 134.30
9	306508		Tumbler Bearing Kit	10		Immediately	$ 20.77
10	312311		Screw----na	10	Appelez-nous	-
11	WP33002917		Screw (hex Head)   (Replaces: 33001855)	10		Immediately	$ 6.90
12	WP33001807		Seal, Tumbler   (Replaces: 33001807)	10		Immediately	$ 21.39
13	WP33002032		Baffle (tall)   (Replaces: 33001756)	10		Immediately	$ 37.95
14	WP33001755		Baffle (short)   (Replaces: 33001755)	10		Immediately	$ 30.85
15	33001794		Tumbler	10	Appelez-nous	-
16	WP33002535		V-belt (tumbler)   (Replaces: 33002535)	10		Immediately	$ 30.78
17	33001788		Screw, Baffle	10	Appelez-nous	-
18	33001801		Back, Tumbler (w/seal)	10			$ 162.40
19	33002190		Screw (no.10-3/8``)	10	Appelez-nous	-
20	WP210720		Rivet   (Replaces: 210720)	10			$ 12.14
21	WP33001443		Nut, Hex (roller Shaft)   (Replaces: 33001443)	10			$ 7.15
22	WP312535		Washer, Spring (roller Shaft)   (Replaces: Y313347)	10		Immediately	$ 10.25
23	Y312948		Shaft, Tumbler Roller	10	Appelez-nous	-
24	12001541		Bearing & Roller Assembly   (Replaces: Y303373)	10		Immediately	$ 27.92
25	WP312535		Washer, Roller Shaft   (Replaces: 312535)	10		Immediately	$ 10.25
26	WP9703438		Ring, Retaining   (Replaces: 410233)	10		Immediately	$ 3.81
27	210932		Screw, No.8 X 9/16 Ctsk	10	Appelez-nous	-
