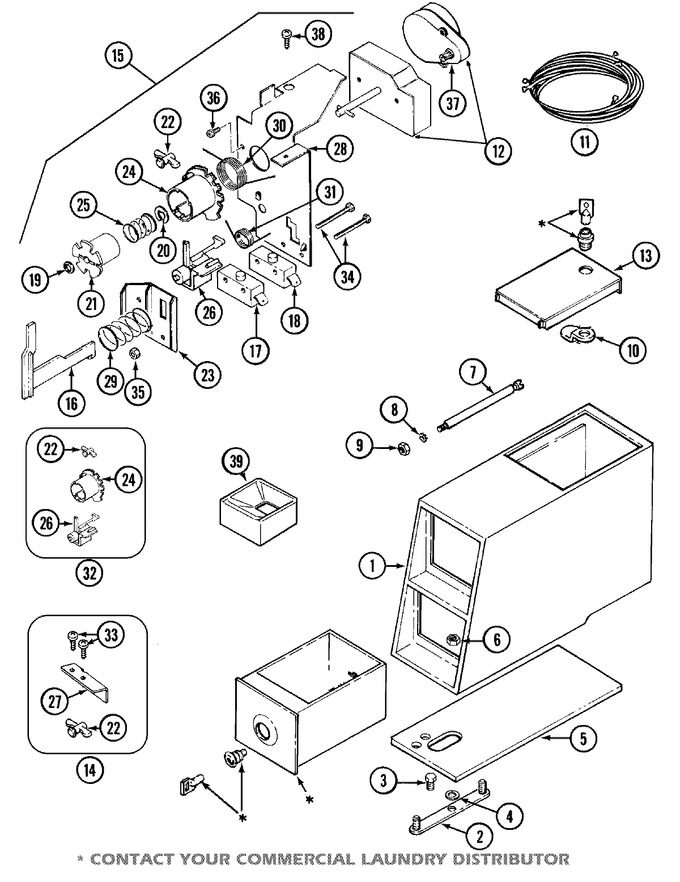

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22002478 | Vault, Coin (wht)cs (Replaces: 22002478) | 10 |
|
$ 266.69 | ||||
| 2 | 22001810 | Strap, Mounting | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 910309 | Washer | 10 |
|
- | ||||
| 5 | 22002072 | Gasket, Control Center (wht) | 10 |
|
- | ||||
| 6 | WP62739 | Nut (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 7 | WP8576635 | Locking Bolt, Coin Slide (Replaces: 22001903) | 10 |
|
Immediately | $ 67.13 | |||
| 8 | 910387 | Lock Washer | 10 |
|
- | ||||
| 9 | Y052721 | Nut | 10 |
|
$ 21.38 | ||||
| 10 | 22001905 | Cam, Locking | 10 |
|
- | ||||
| 11 | 33001195 | Wire Harness, Timer | 10 |
|
- | ||||
| 12 | 33002136 | Timer (240-50) | 10 |
|
- | ||||
| 13 | 22001883 | Screw | 10 |
|
- | ||||
| 13 | 22001881 | Grommet, Double | 10 |
|
- | ||||
| 13 | 22001882 | Latch, Access Door | 10 |
|
- | ||||
| 13 | 33002772 | Door, Access(wht) | 10 |
|
- | ||||
| 14 | 33002598 | Actuator, Dryer Kit | 10 |
|
- | ||||
| 15 | 33001276 | Torsion Timer Assy. (240-50hz) | 10 |
|
- | ||||
| 16 | 33002968 | Slider (Replaces: 314337) | 10 |
|
$ 41.03 | ||||
| 17 | 305798 | Bypass Switch For Motor | 10 |
|
- | ||||
| 18 | Y305799 | Bypass Switch For Heater | 10 |
|
$ 29.88 | ||||
| 19 | 211790 | Lock Ring For Timer Shaft | 10 |
|
$ 6.54 | ||||
| 20 | Y312270 | E Clip | 10 |
|
- | ||||
| 21 | 314330 | Driver For Index Wheel | 10 |
|
$ 2.15 | ||||
| 22 | 314335 | Time Adjustment Peg | 10 |
|
$ 5.22 | ||||
| 22 | Y308109 | Adjustment Return Stop (Replaces: 314547) | 10 |
|
$ 53.59 | ||||
| 23 | 314339 | Switch And Slider Bracket | 10 |
|
- | ||||
| 24 | 314546 | Index Wheel | 10 |
|
$ 31.97 | ||||
| 25 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 26 | 314548 | Actuator, Switch | 10 |
|
- | ||||
| 27 | 33001708 | Bracket, Coin Slide | 10 |
|
- | ||||
| 28 | 33002702 | Timer Bracket | 10 |
|
- | ||||
| 29 | 314340 | Helical Spring | 10 |
|
- | ||||
| 30 | 314331 | Return Spring | 10 |
|
$ 36.13 | ||||
| 31 | 314332 | Actuator Spring | 10 |
|
- | ||||
| 32 | 306104 | Torsion-timer Kit | 10 |
|
- | ||||
| 33 | W11684507 | Screw (Replaces: 212707) | 10 |
|
$ 12.23 | ||||
| 34 | 315277 | Screw | 10 |
|
- | ||||
| 35 | M0282005 | Hex. Nut, No.6-32 (Replaces: Y052634) | 10 |
|
$ 7.07 | ||||
| 36 | WP488234 | Screw -relay To Tub Support (Replaces: 910708) | 10 |
|
$ 6.07 | ||||
| 37 | W10124350 | Not Required Part Or See Note | 10 |
|
- | ||||
| 38 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 10 |
|
$ 6.75 | ||||
| 39 | 22002533 | Weld Assy., Funnel | 10 |
|
- |
