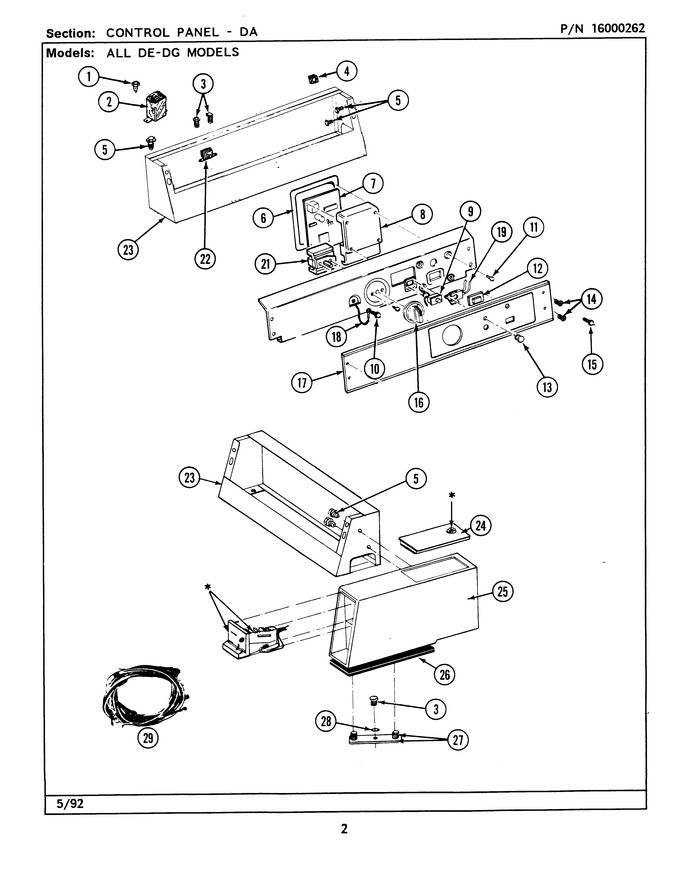

01 - Control Panel
02 - Control Center
03 - Cabinet-front
04 - Cabinet-rear
05 - Door
06 - Tumbler
07 - Motor Drive
08 - Motor Drive-thermostats
09 - Gas Valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP3177991 | Screw, Relay (Replaces: Y251119) | A0 |
|
Immediately | $ 6.47 | |||
| 002 | 208048 | Relay, Heater Motor | A0 |
|
- | ||||
| 002 | NLA | Relay | A4 |
|
- | ||||
| 003 | WP90767 | Screw, Transformer & Mtg Strap (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 004 | 215003 | Fastener, Control Panel | A0 |
|
- | ||||
| 005 | WP90767 | Screw, Console (Replaces: 212276) | A0 |
|
Immediately | $ 7.04 | |||
| 006 | NLA | Cover, Circuit Board | A0 |
|
- | ||||
| 007 | NLA | Control Board Assy. | A1 |
|
- | ||||
| 008 | NLA | Enclosure, Circuit Board | A0 |
|
- | ||||
| 009 | NLA | Switch, Start | A0 |
|
- | ||||
| 010 | WP488234 | Screw, Cycle Selector Switch & Ground Wire (Replaces: Y313588) | A0 |
|
$ 6.07 | ||||
| 011 | 312956 | Screw, Enclosure | A0 |
|
- | ||||
| 012 | NLA | Window, Data | A0 |
|
- | ||||
| 013 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | A0 |
|
Immediately | $ 7.14 | |||
| 014 | WPW10131119 | Screw, Torx (Replaces: 215506) | A0 |
|
$ 6.26 | ||||
| 015 | NLA | Lens, Light Green | A0 |
|
- | ||||
| 016 | 306938 | Knob, Selector Switch | A0 |
|
- | ||||
| 017 | NLA | Panel, Control | A0 |
|
- | ||||
| 018 | 205810 | Wire, Ground | A0 |
|
- | ||||
| 019 | 204075 | Light, Indicator | A0 |
|
- | ||||
| 020 | 315343 | Bracket, Back (wht) | A0 |
|
- | ||||
| 020 | NLA | (alm) | A0 |
|
- | ||||
| 021 | WPW10327105 | Switch, Cycle Selector (Replaces: 307237) | A0 |
|
$ 145.49 | ||||
| 022 | NLA | Transformer | A0 |
|
- | ||||
| 023 | NLA | Control Cover Assy. (wht) | A0 |
|
- | ||||
| 024 | 203188 | Access Door (wht) | A0 |
|
- | ||||
| 024 | 203188L | (alm) | A0 |
|
- | ||||
| 024 | 203188M | (hvst Wheat) | A0 |
|
- | ||||
| 025 | 207940 | Case, Coin Meter (wht) | A0 |
|
- | ||||
| 025 | 207940L | (alm) | A0 |
|
- | ||||
| 025 | NLA | (hvst Wheat) | A0 |
|
- | ||||
| 026 | 214660 | Gasket, Meter Case | A0 |
|
- | ||||
| 027 | NLA | Mtg. Strap----na | A0 |
|
- | ||||
| 028 | 910309 | Washer, Mtg. Strap | A0 |
|
- | ||||
| 029 | 208045 | Harness, Wire (switches) Sensor Switches To Circuit Brd | A0 |
|
- | ||||
| 029 | NLA | Harness,wire Main | A0 |
|
- |
