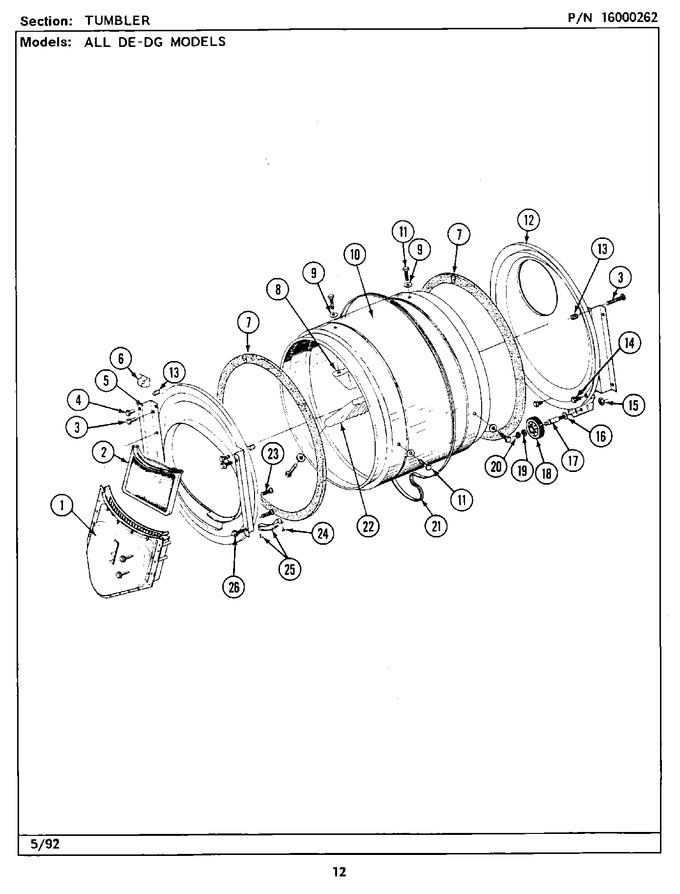

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y307112		Duct, Outlet Assy. ----s	A0	Appelez-nous	-
002	307108		Screen, Lint	A0	Appelez-nous	-
003	NLA		Screw, Tumbler Support	A0	Appelez-nous	-
004	Y313561		Screw, Tumbler Front	A0			$ 5.27
005	307109		Front, Tumbler (w/seal)	A0	Appelez-nous	-
006	Y310376		Clip, Wire Harness	A0	Appelez-nous	-
007	WP314820		Seal, Tumbler   (Replaces: 314820)	A0		Immediately	$ 30.66
008	314803		Baffle (short)	A0	Appelez-nous	-
009	314158		Washer, Baffle	A0			$ 5.48
010	314802		Tumbler W/out Baffles	A0	Appelez-nous	-
010	306663		Tumbler W/baffles	A0	Appelez-nous	-
011	Y310759		Screw, Tumbler Baffles	A0			$ 5.75
012	Y308544		Back, Tumbler (w/seal) ---s	A5	Appelez-nous	-
012	Y307114		Back, Tumbler (w/seal) ---s	A0	Appelez-nous	-
013	NLA		Cover, Thread	A0	Appelez-nous	-
014	WP90767		Screw, Tumbler Back   (Replaces: 211294)	A0		Immediately	$ 7.04
015	WP33001443		Nut, Roller Shaft   (Replaces: 312538)	A0			$ 7.15
016	WP312535		Washer, Spring (roller Sft)   (Replaces: Y313347)	A0		Immediately	$ 10.25
017	Y312948		Shaft, Tumbler Roller----c	A0	Appelez-nous	-
018	12001541		Bearing & Roller Assembly   (Replaces: Y303373)	A0		Immediately	$ 27.92
019	WP312535		Washer, Roller Shaft   (Replaces: 312535)	A0		Immediately	$ 10.25
020	WP9703438		Ring, Retaining   (Replaces: 410233)	A0		Immediately	$ 3.81
021	WPY312959		Belt, Drum   (Replaces: Y312959)	A0		Immediately	$ 30.66
022	33001004		Baffle (tall)   (Replaces: 314804)	A0			$ 133.20
023	WP3400065		Screw, Inlet Duct ----s   (Replaces: Y314110)	A0		Immediately	$ 6.97
024	WP210720		Rivet   (Replaces: 210720)	A0			$ 12.14
025	306508		Tumbler Bearing Kit ----w	A0		Immediately	$ 20.77
026	Y310632		Screw, Tumbler Front	A0	Appelez-nous	-
